Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lamp Control Module >> Dimmer Module >> RH

RH

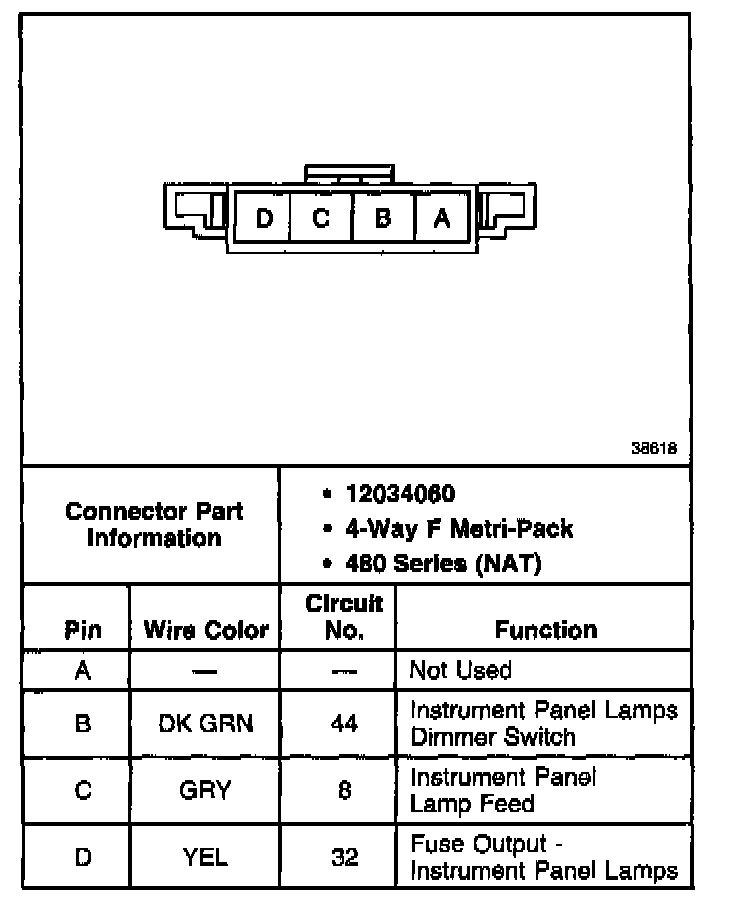

RH Dimmer Module:
