Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Instrument Panel Compartment

Instrument Panel Compartment

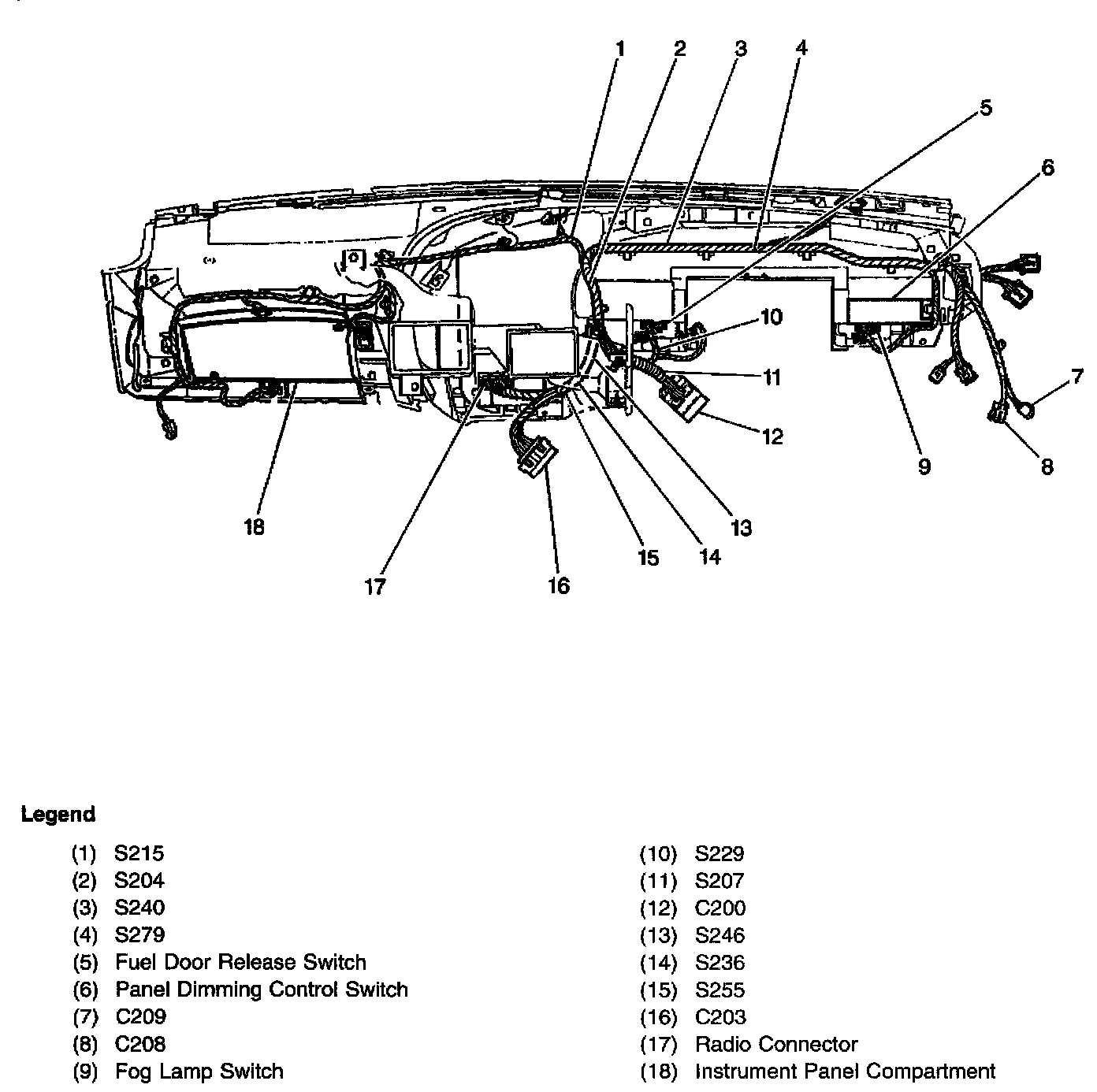

Behind The Instrument Panel (Oldsmobile Shown):
