Instrument Cluster

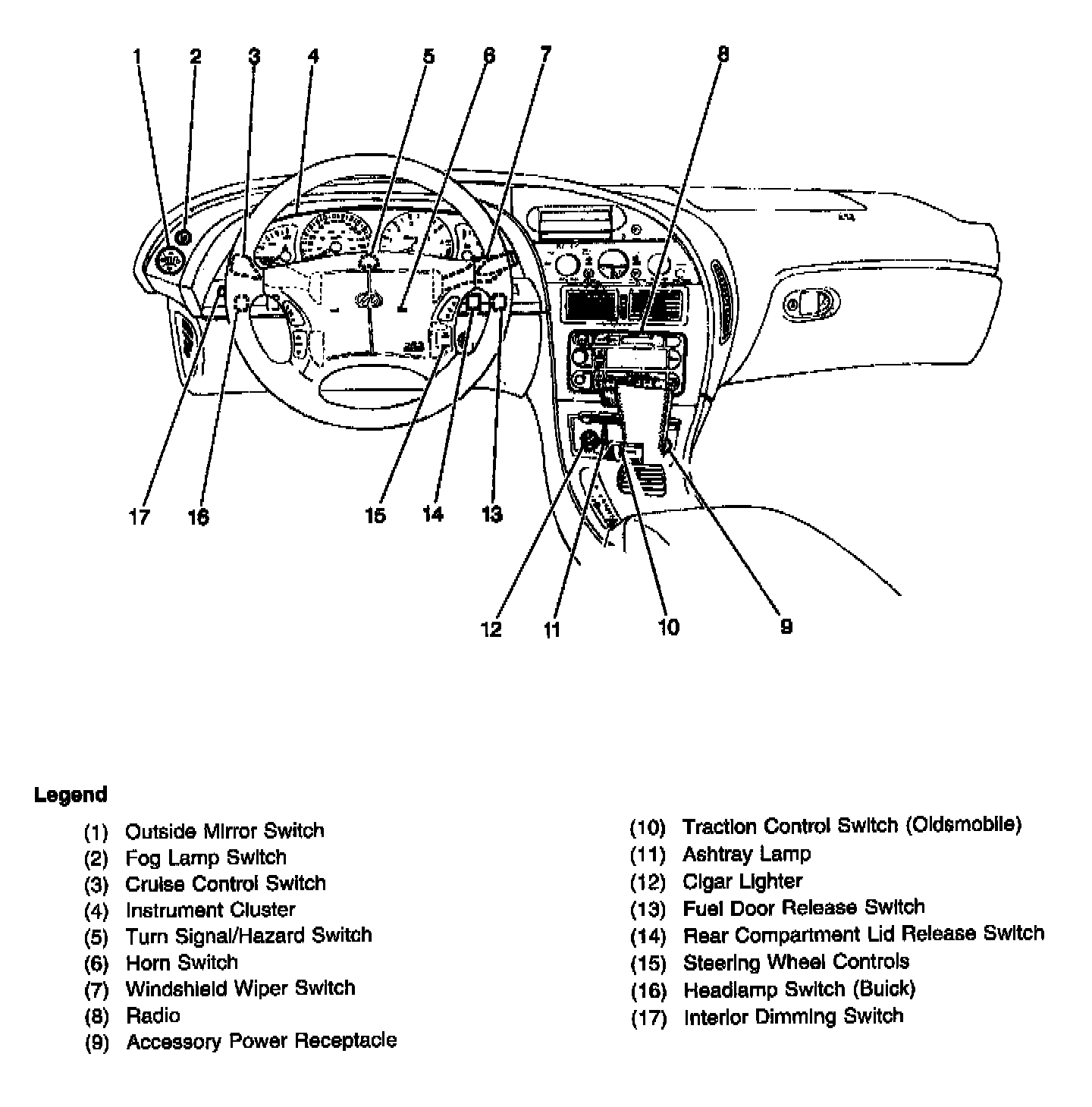

Passenger Compartment, Front Of The Instrument Panel (IP) (Oldsmobile Shown, Buick Similar):
In the left side of the IP, above the steering column
