A/C Compressor Clutch
A/C Compressor Clutch

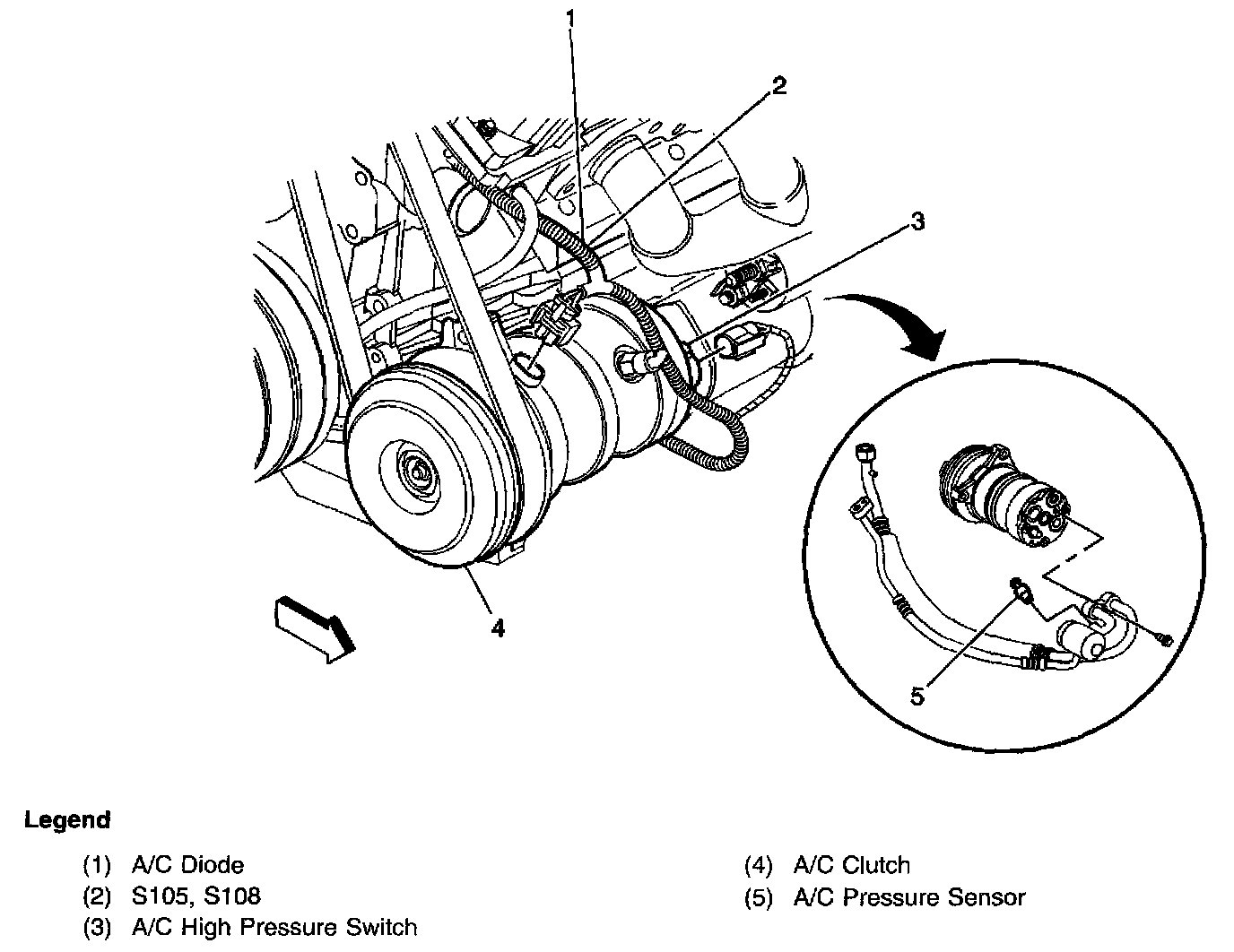

Right Front At The Engine:
On the right lower front of the engine, on the A/C compressor
