Cruise Control Module - Power, Ground and VSS
Cruise Control Module - Power, Ground and VSS

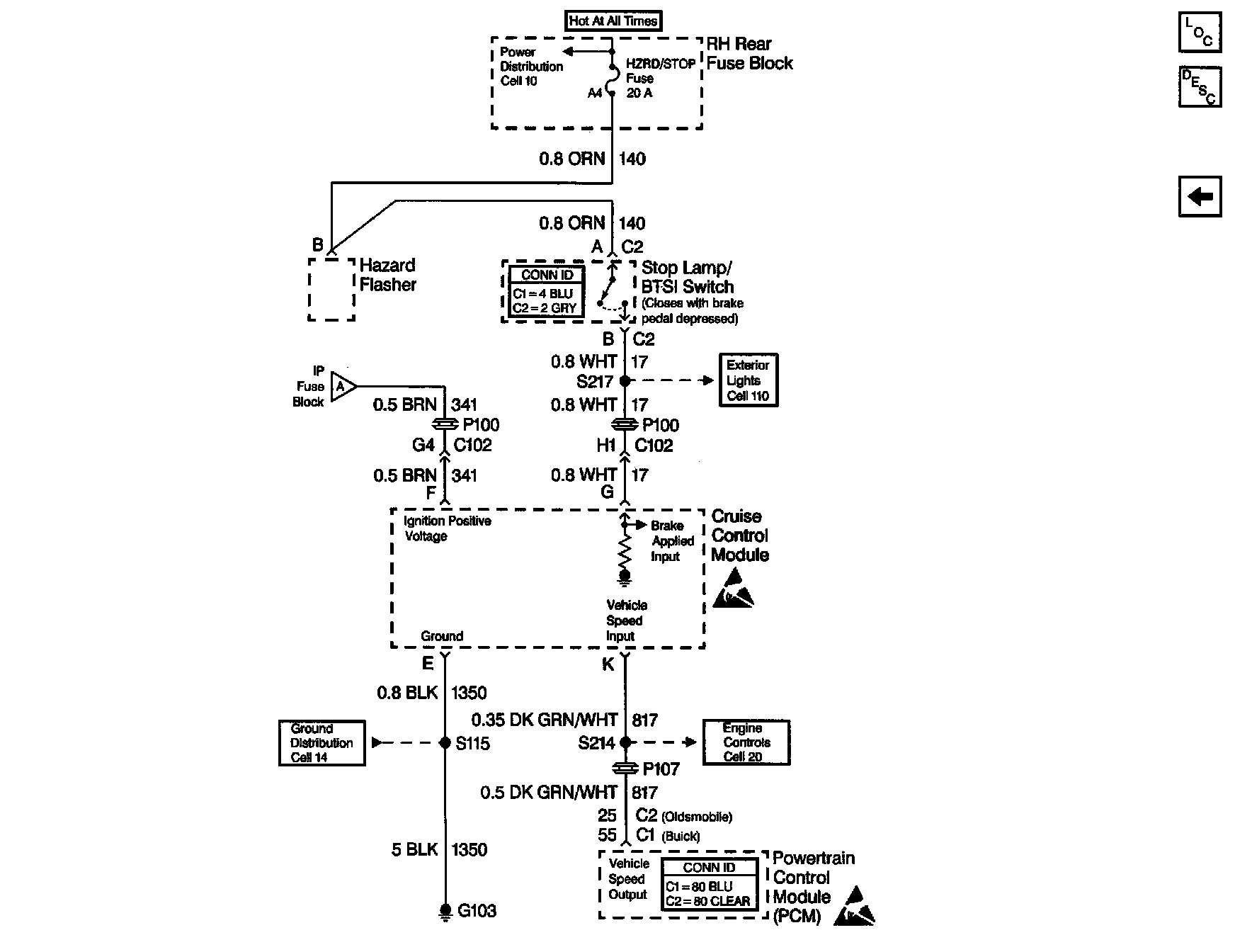

Cruise Control Schematics: Cruise Control Module - Power, Ground And VSS:
