Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Seat Motor Position Sensor >> Diagrams >> Seat Rear Vertical Position Sensor, LH

Seat Rear Vertical Position Sensor, LH

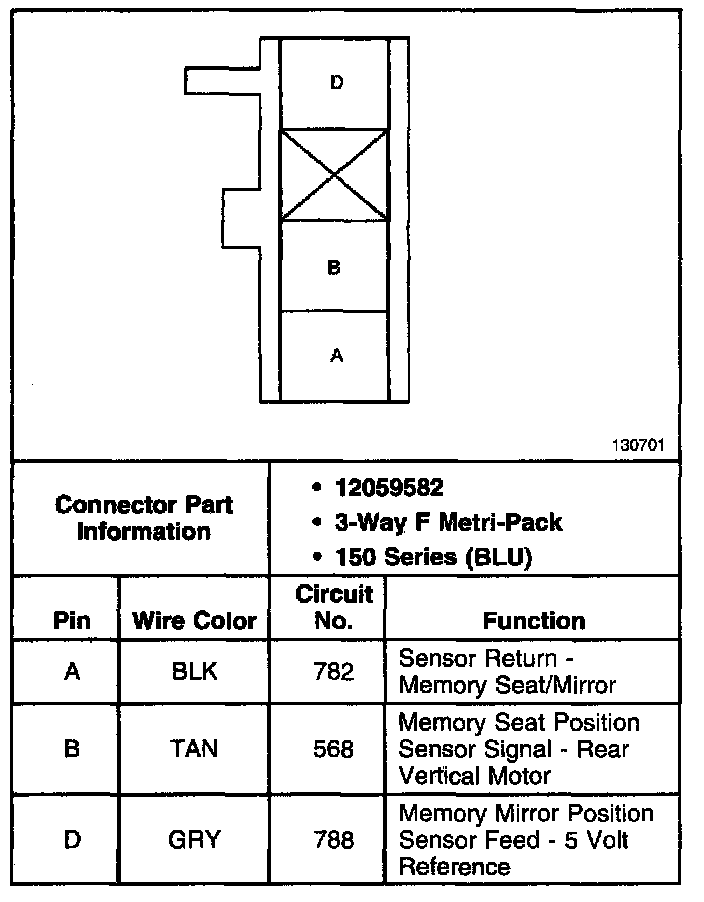

LH Seat Rear Vertical Position Sensor:
