Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams

Power Door Lock Switch: Diagrams

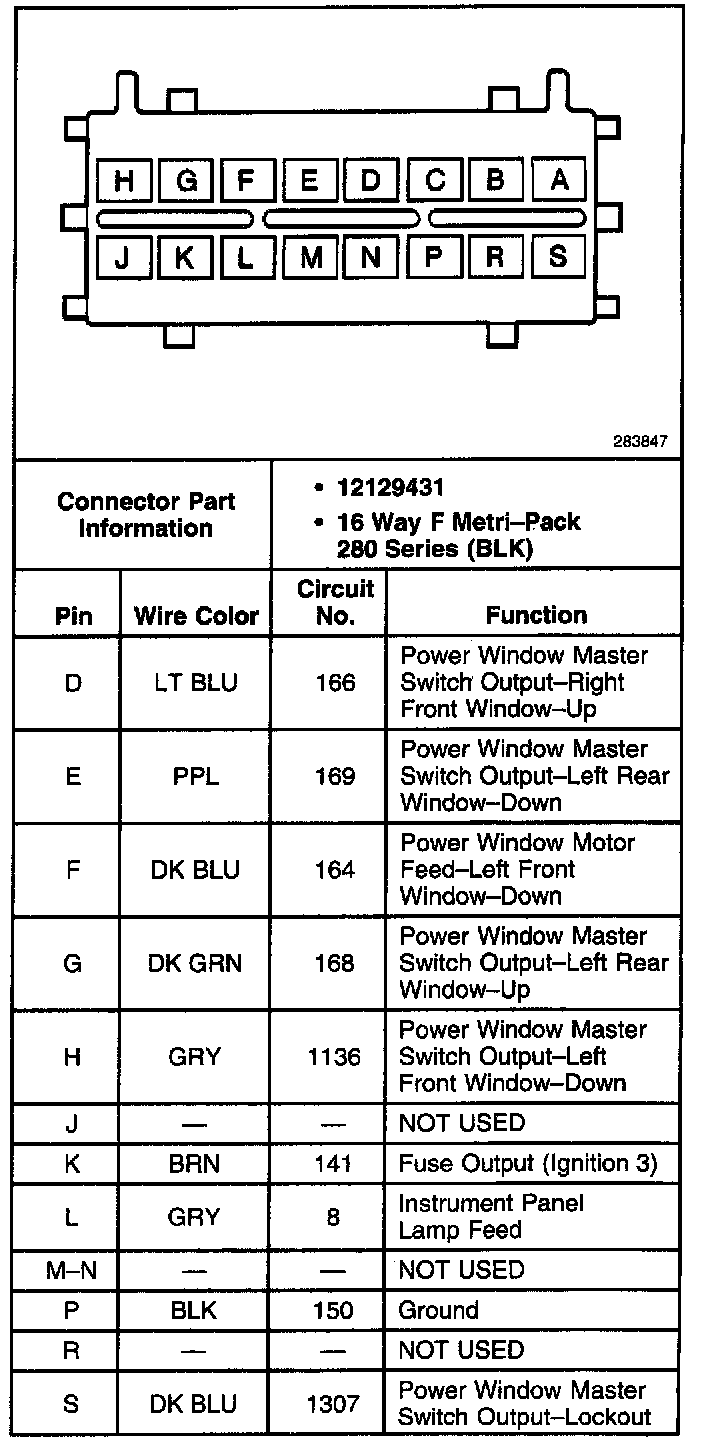

LH Front Door Lock/Window Switch (Oldsmobile) (Part 2 Of 2):

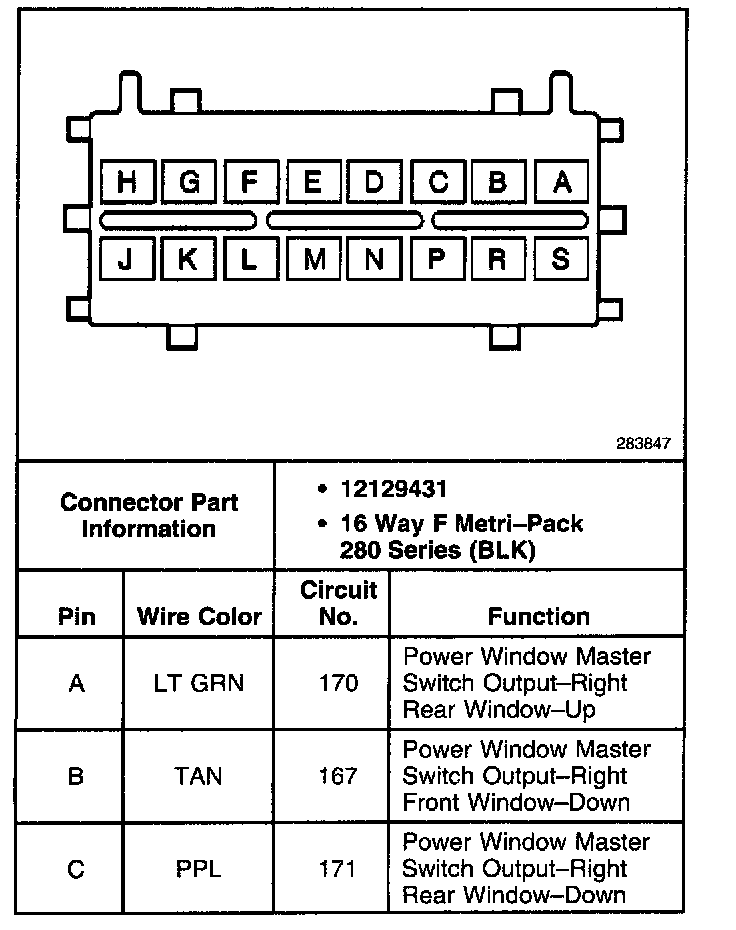

LH Front Door Lock/Window Switch (Oldsmobile) (Part 1 Of 2):
