Seat Back Cover and Pad Replacement - Front

REMOVAL PROCEDURE
1. Remove the seat.
2. Remove the seat back.
3. Remove the head restraint.
4. Remove the seat back cover to the position of the head restraint.

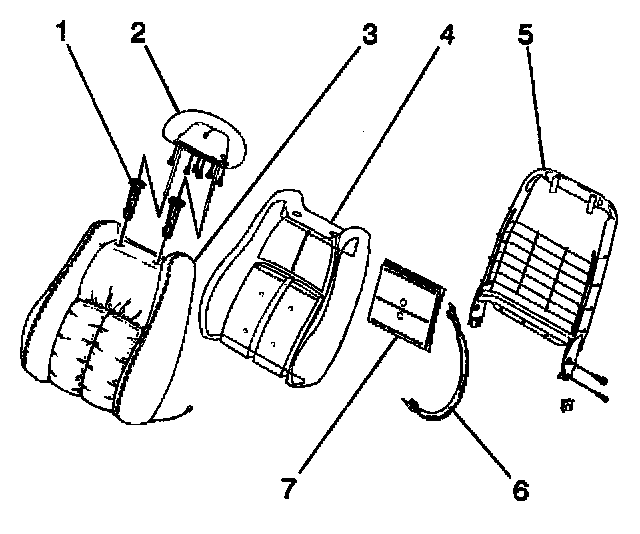

5. Remove the head restraint guides (1).
6. Remove the seat back cover (3).
7. Separate the set back frame (5) from the cushion (4).
8. Remove the cushion (4).

INSTALLATION PROCEDURE
1. Install the cushion (4).
2. Install the seat back frame (5) to the cushion (4).
3. Install the seat back cover (3).
4. Install the head restraint guides (1).
5. Install the seat back cover to the position of the head restraint.
6. Install the head restraint (2).
7. Install the seat back.
8. Install the seat.
