Seat Cushion Replacement - Rear

REMOVAL PROCEDURE

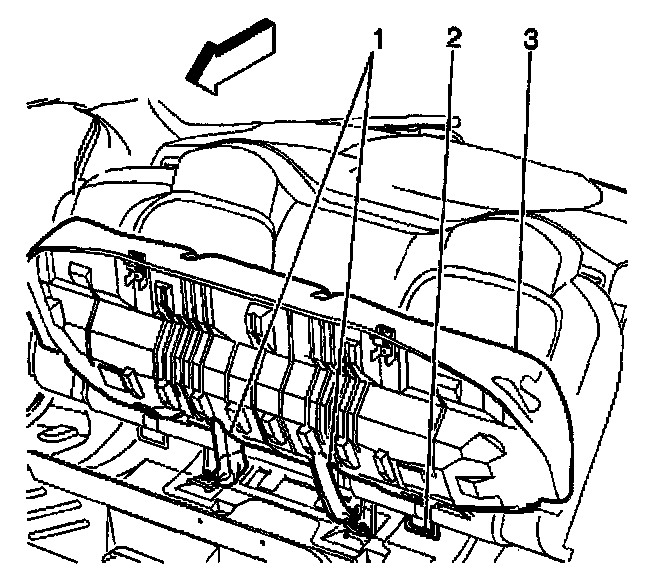

Remove the seat cushion by pushing rearward on the lower seat frame and lining upward on the seat cushion frame (3).

This will disengage the cushion frame wires from the retainers (2) on the rear seat pan.

INSTALLATION PROCEDURE
1. Place the cushion (3) into the body.
2. Position the rear edge of the cushion under the rear seat back while positioning the seat belt straps (1).
3. Align the frame wire offsets on the front of the seat cushion frame with the retainers (2) on the floor pan.
4. Push the seat cushion (3) rearward until the offsets engage in the retainers.
5. Push down and pull the cushion forward in order to fully engage the cushion frame wires to the retainers on the seat pan.
