Seat Cushion Cover Replacement - Front

REMOVAL PROCEDURE




1. Remove the seat.
2. Remove the seat back.
3. Remove the recliner handle, if equipped.
4. Remove the armrest, if equipped.
5. Disengage the J-retainers.
6. Remove the hog rings that retain the seat cushion pad to the springs.
7. Disconnect the electrical connectors (if equipped) with heated seats.

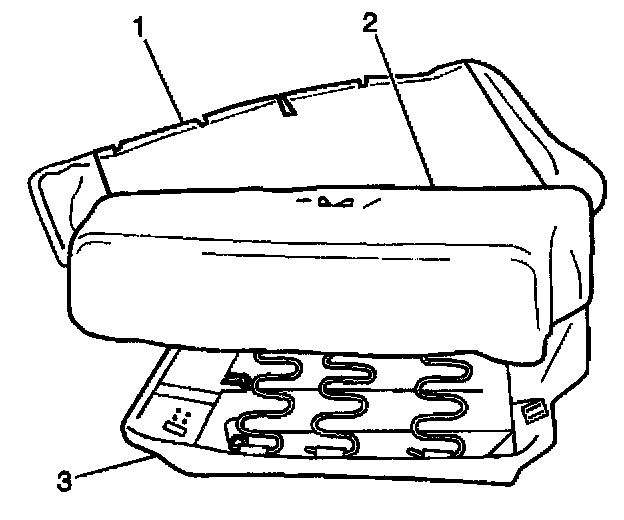

8. Remove the pad (2) and the cover (1) from the frame (3).
9. Remove the hog rings from the bottom of the pad.
10. Remove the trim cover from the cushion.

INSTALLATION PROCEDURE




1. Install the trim cover over the cushion. Align the locating holes in the cover to the work lines in the pad.
2. Install the hog rings to the bottom of the pad.

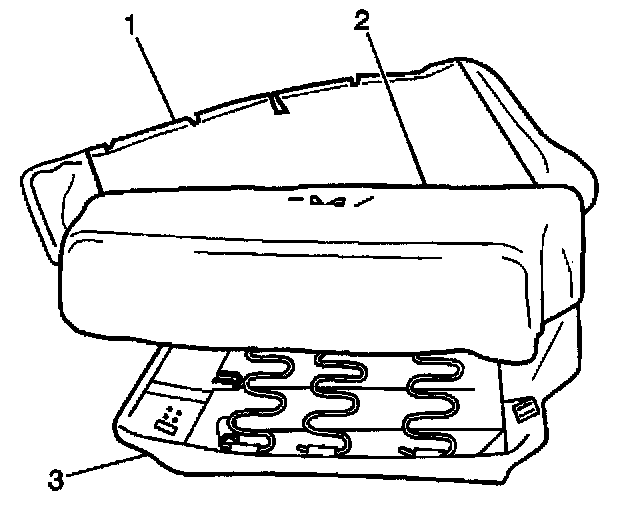

3. Install the cover (1) and the cushion (2) in the frame (3).
4. Install the hog rings in order to retain the seat cushion pad to the springs.
5. Attach the J-retainers.
6. Connect the electrical connectors.
7. Install the armrest, if equipped.
8. Install the recliner handle, if equipped.
9. Install the seat back.
10. Install the seat.
