Head Rest: Service and Repair

REMOVAL PROCEDURE

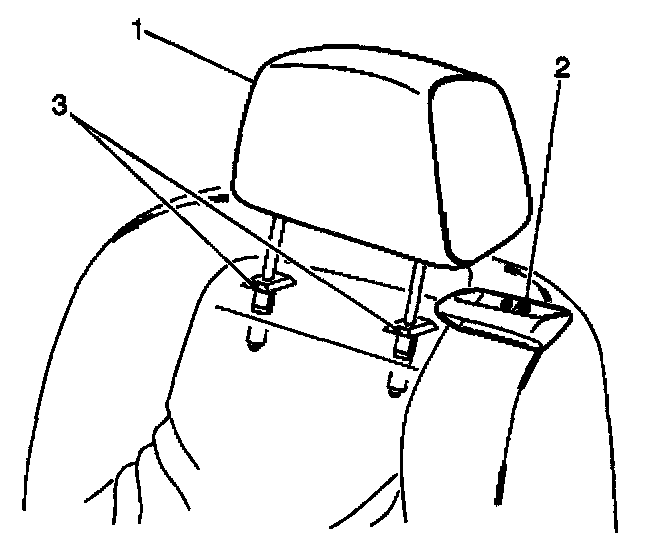

1. Lift the head restraint (1) to the full up position.
2. Using a small-pointed tool or a paper clip, insert the tool into the holes (3) on each head restraint post in order to release the retainer locks.
3. While pushing in on the small-pointed tool or the paper clip, pull upward on the head restraint (1).

INSTALLATION PROCEDURE
1. Align the head restraint posts (1) into the retainer guides (3).
2. Push the head restraint downward into the retainer guides.
3. Verify the engagement of the retainer locks by pulling upward on the head restraint.
