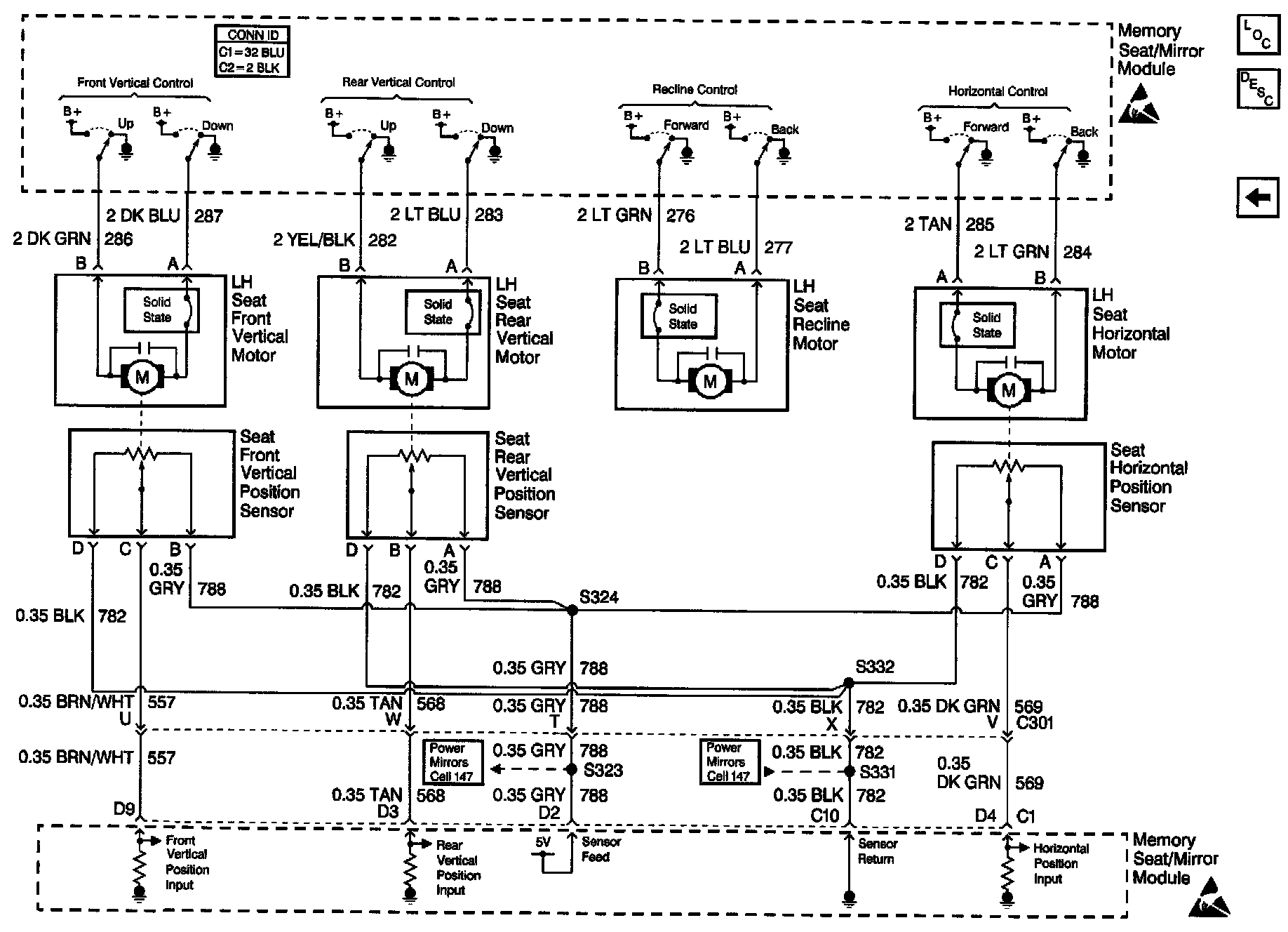

Seat Motors and Position Sensors

Memory Seats Schematics (Oldsmobile): Seat Motors And Position Sensors:
