PWR, GND, LH Seat/Lock Switch and Memory Seat/Mirror Module
PWR, GND, LH Seat/Lock Switch and Memory Seat/Mirror Module

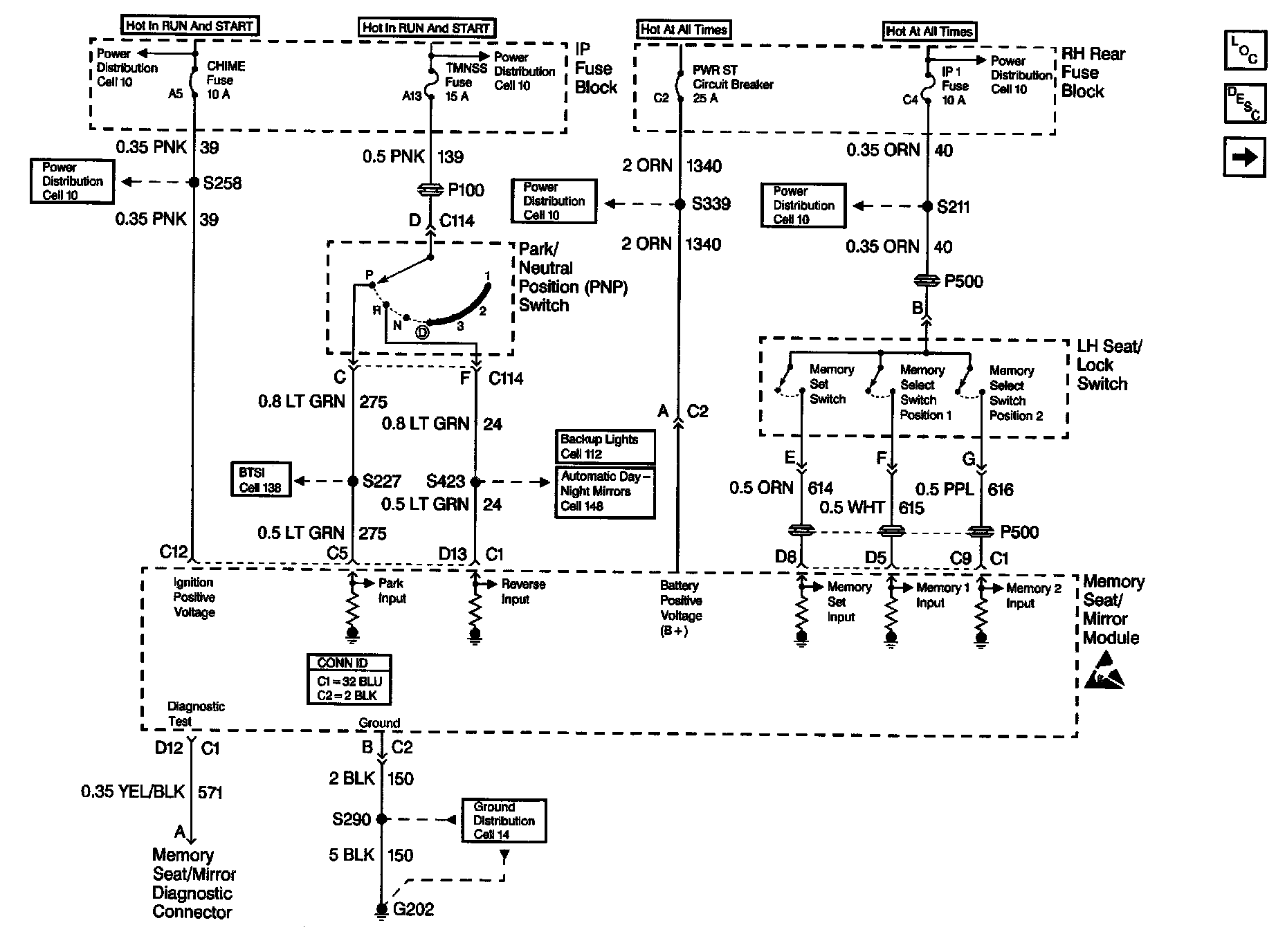

Memory Seats Schematics (Oldsmobile): PWR, GND, LH Seat/Lock Switch And Memory Seat/Mirror Module:
