Instrument Panel (IP) - Cluster Trim Panel Replacement

REMOVAL PROCEDURE
1. Remove the rear compartment lid/fuel filler door release switch assembly.
2. Remove the interior lamp switch assembly.

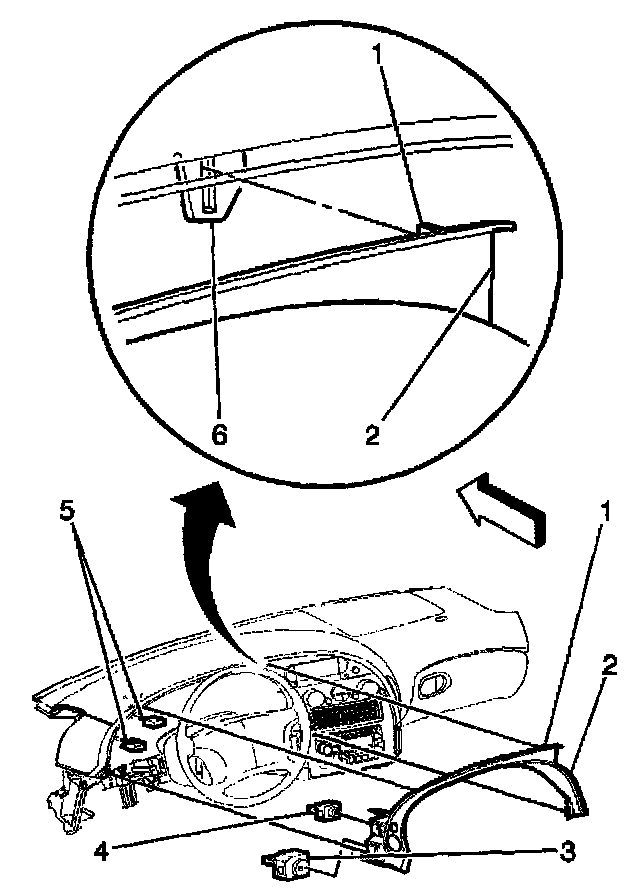

3. Partially remove the instrument cluster trim plate (2) by carefully pulling the plate rearward.
4. Disconnect the electrical connectors (5) from the trim plate (2).
5. Remove the trim plate (2).
6. Remove the fog lamp switch (4), if necessary, by releasing the retaining tabs.
7. Remove the power mirror switch, if necessary.

INSTALLATION PROCEDURE
1. Install the fog lamp switch (4) to the cluster trim plate (2), if necessary.
2. Install the power mirror switch, if necessary.
3. Connect the electrical connectors (5).
4. Insert the tabs (1) into the retainers (6) in order to install the trim plate (2) to the instrument panel.
5. Apply pressure until the trim plate (2) is fully seated.
6. Install the interior lamp switch assembly.
7. Install the rear compartment lid/fuel filler door release switch assembly.
