Front Floor Console Trim Plate Replacement

REMOVAL PROCEDURE




1. Remove the air deflector/radio trim plate.
2. Remove the shifter handle retaining clip.

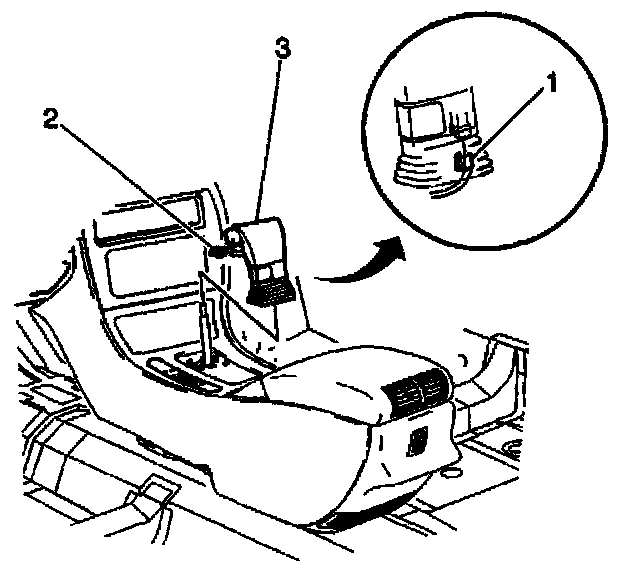

3. Partially remove the shifter handle to allow access to the electrical connector (1).
3.1. Disconnect the electrical connector (1).
3.2. Removal the handle.




4. Remove the fasteners (1) that retain the shifter trim plate (2) to the console.
5. Remove the console compartment bin.
6. Pull up on the shifter trim plate (2) in order to disengage the tabs (5) from the retainers (4).
7. Disconnect the connector (3) from the shifter trim plate wire harness.
8. Remove the shifter trim plate (2) from the console assembly.

INSTALLATION PROCEDURE




1. Partially install the shifter trim plate (2).
2. Connect the electrical connector (3) to the shifter trim plate wire harness.
3. Install the shifter trim plate (2) to the console assembly.
Push down in order to seat the tabs (5) into the retainers (4).
4. Install the console compartment bin.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the fasteners (1) that retain the shifter trim plate (2) to the console.

Tighten
Tighten the fasteners to 1.9 N.m (17 lb in).




6. Partially install the shifter handle.
6.1. Connect the electrical connector (1).
6.2. Install the shifter handle.
7. Install the shifter handle retaining clip.
8. Install the air deflector/radio trim plate.
