Door Replacement - Console Compartment

REMOVAL PROCEDURE
1. Remove the storage bin.

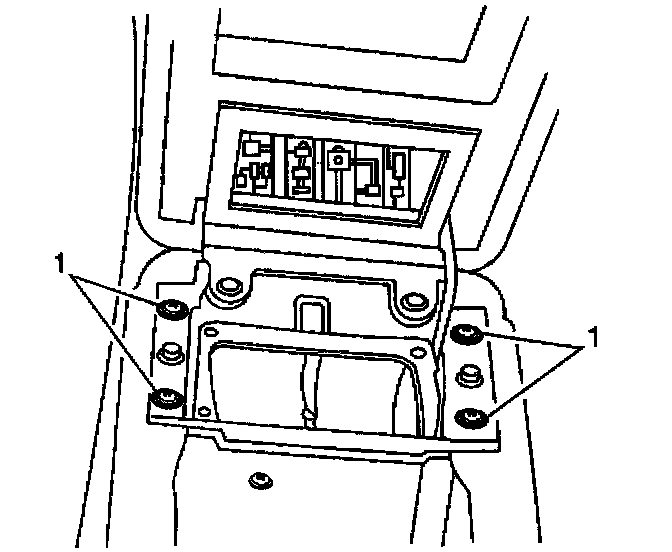

2. Remove the fasteners (1) that retain the console compartment door hinge to the console.
3. Partially close the console compartment door, slide the door forward in order to clear the console.
Remove the door assembly.
4. Remove the hinge from the console door.

INSTALLATION PROCEDURE
1. Install the hinge to the console door.
2. Install the door to the console assembly by performing the following steps:
2.1. Put the door hinge in the closed position.
2.2. Install the door forward of the mounting location.
2.3. Slide the door rearward in order to allow the hinge to clear the console.
3. Open the door.
4. Align the hinge to the console.
5. Install the hinge fasteners (1).
6. Install the storage bin.
