Console Storage Bin Replacement

REMOVAL PROCEDURE




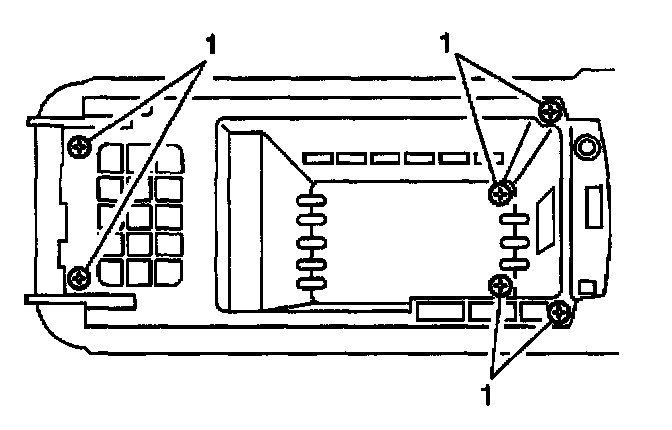

1. Remove the fasteners (1) from the storage bin.




2. Partially pull the storage bin out of the console.

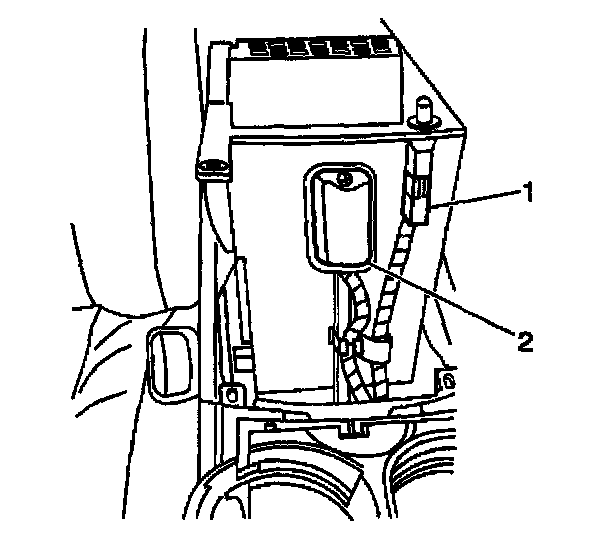

3. Disconnect the electrical connector (1).
4. Remove the lamp (2).
5. Remove the storage bin.

INSTALLATION PROCEDURE




1. Partially install the storage bin.
2. Connect the electrical connector (1).
3. Install the lamp (2).




4. Install the console storage bin into the console.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the storage bin fasteners (1).

Tighten
Tighten the fasteners to 1.3 N.m (12 lb in).
