Armrest Replacement - Rear Seat

REMOVAL PROCEDURE
1. Remove the seat cushion.
2. Remove the seat back.
3. Remove the hog rings from the center seat back cover.
4. Remove the center cover.

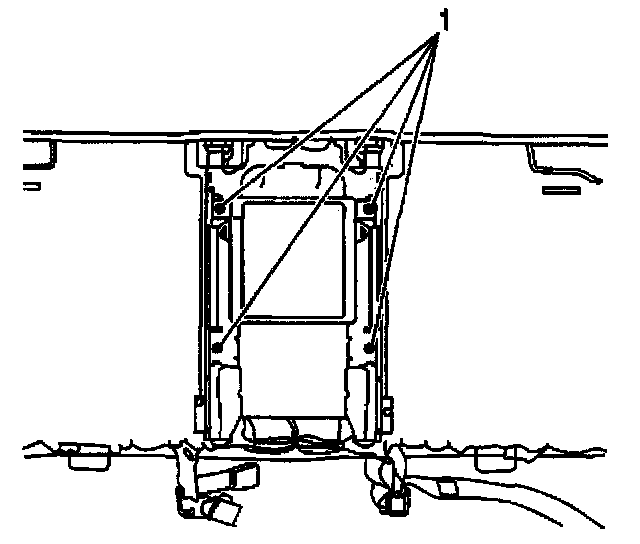

5. Remove the fasteners (1) from the armrest brackets.
6. Remove the armrest assembly.
7. Remove the bracket to armrest fasteners.
8. Remove the armrest.

INSTALLATION PROCEDURE
1. Install the bracket to armrest fasteners onto the armrest.
2. Install the armrest assembly to the seat back.
3. Install the fasteners (1) to the armrest brackets.
4. Install the center cover.
5. Install the hog rings to the center cover
6. Install the seat back.
7. Install the seat cushion.
