Garage Door Opener Replacement

REMOVAL PROCEDURE

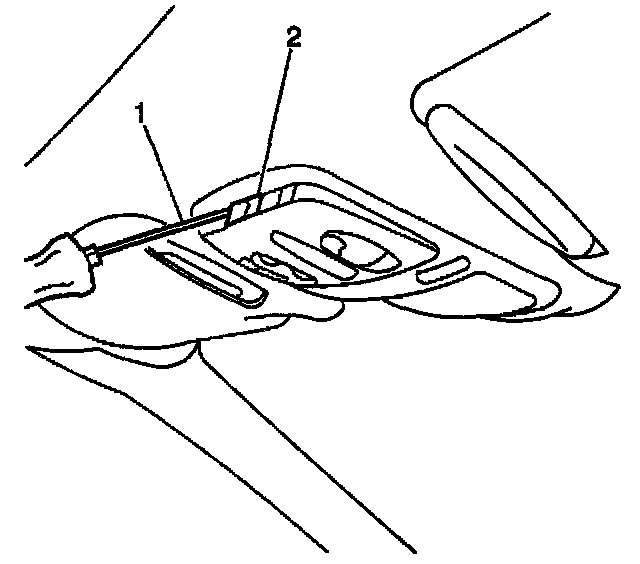

1. Insert a flat blade tool (1) at the rear edge.
2. Disengage the forward tabs (2) from the overhead console.




3. Disconnect the electrical connector.

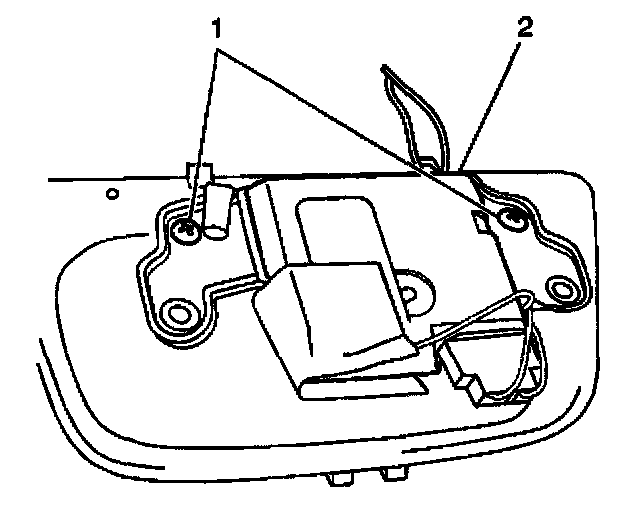

4. Remove the screws (1) from the UGDO (2) to overhead console.

INSTALLATION PROCEDURE
1. Install the screws (1) that attach the UGDO (2) to the roof console.
2. Connect the electrical connector to the garage door opener.
3. Position the access door and align the rear tabs into the overhead console.
4. Push upward in order to engage the front tab.
