Ignition Switch, Reading Lamp, Panel Dimmer Switch

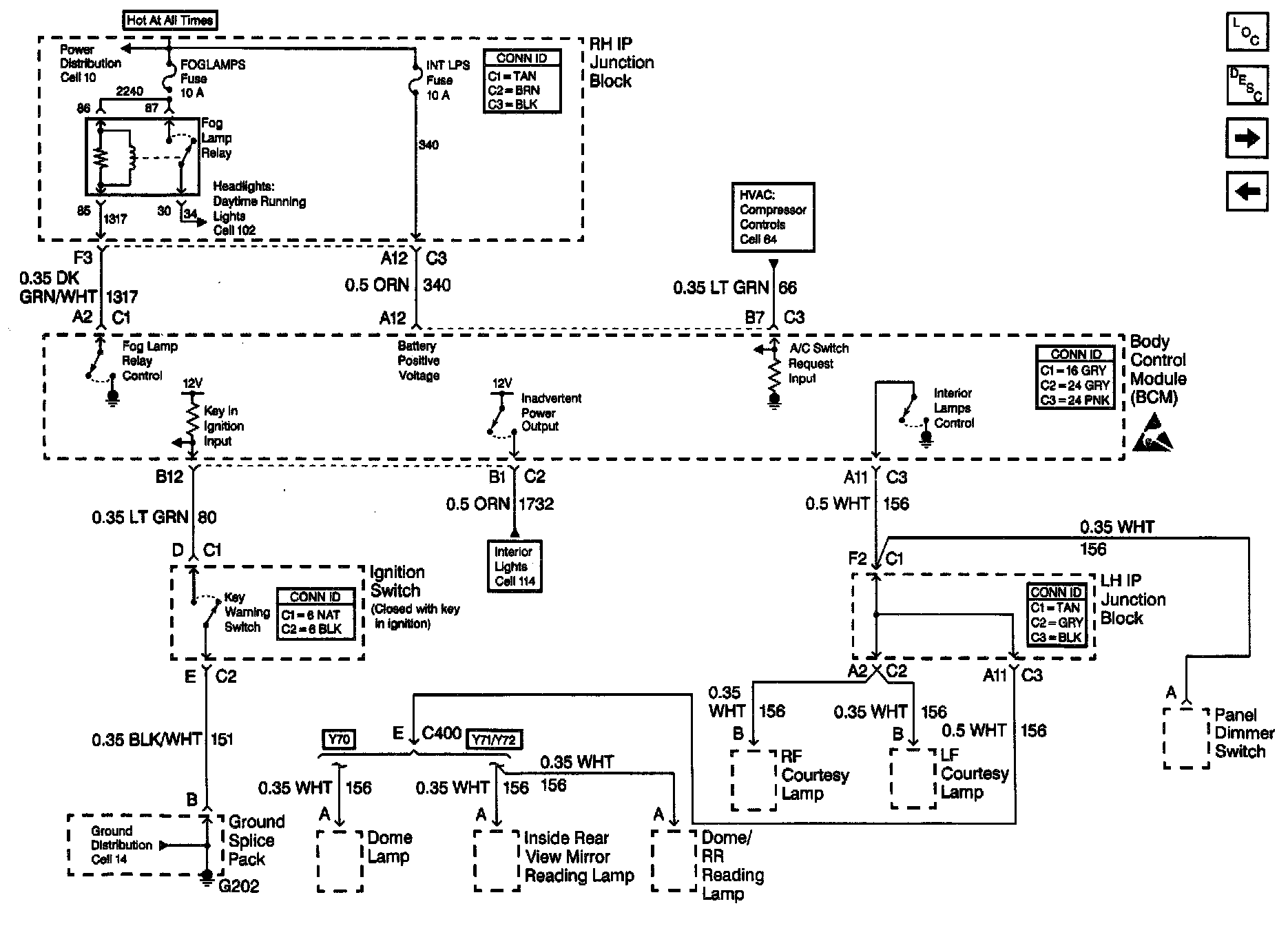

Body Control Module Schematics: Ignition Switch, Reading Lamp, Panel Dimmer Switch:
