Home >> Oldsmobile >> 1998 >> Regency V6-3.8L VIN K >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls >> Automatic

Automatic

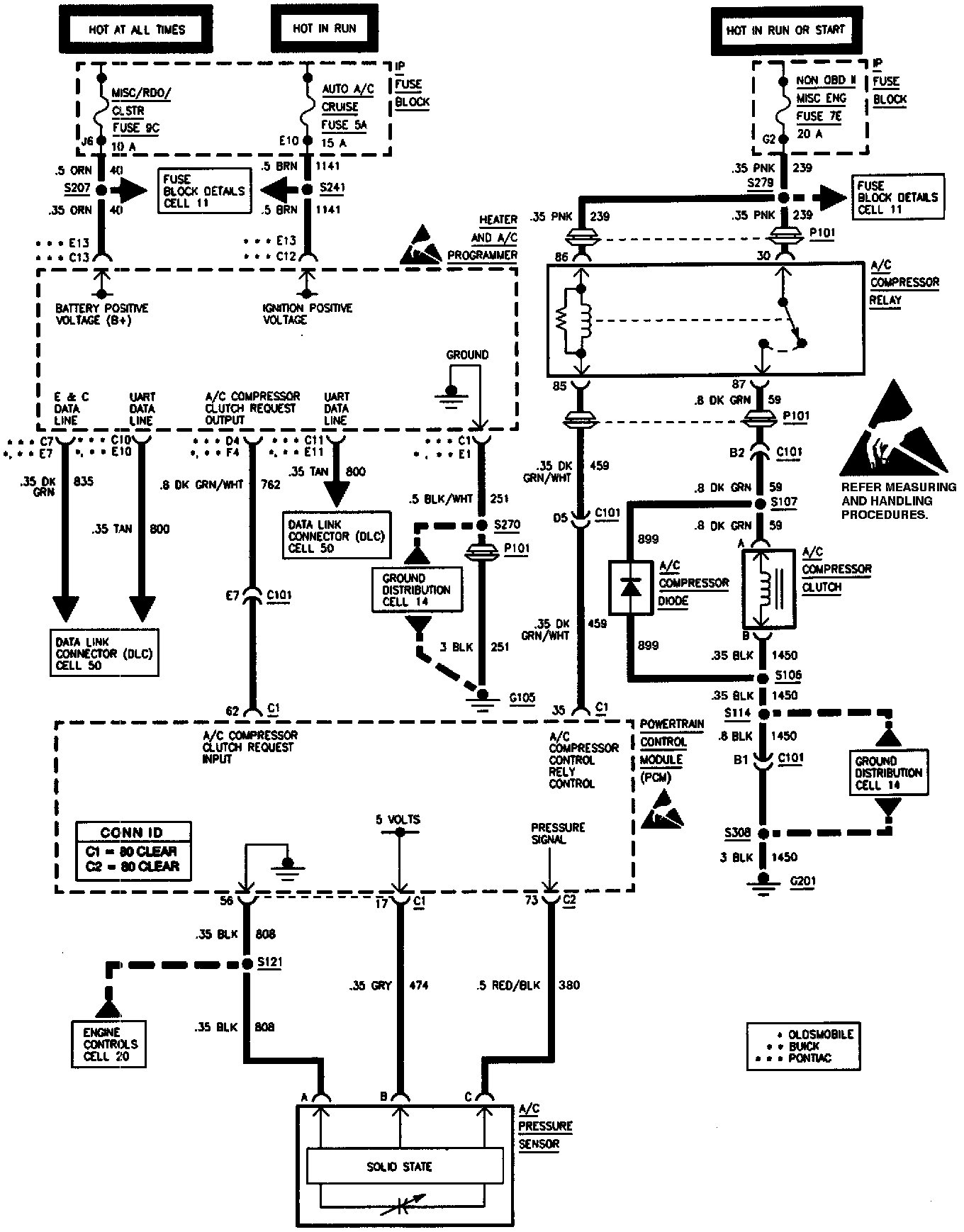

Compressor Controls: Automatic - Electronic Automatic (C68)/Dual (CJ2) Air Conditioning:
