Brake Fluid Level Switch
Brake Fluid Level Switch

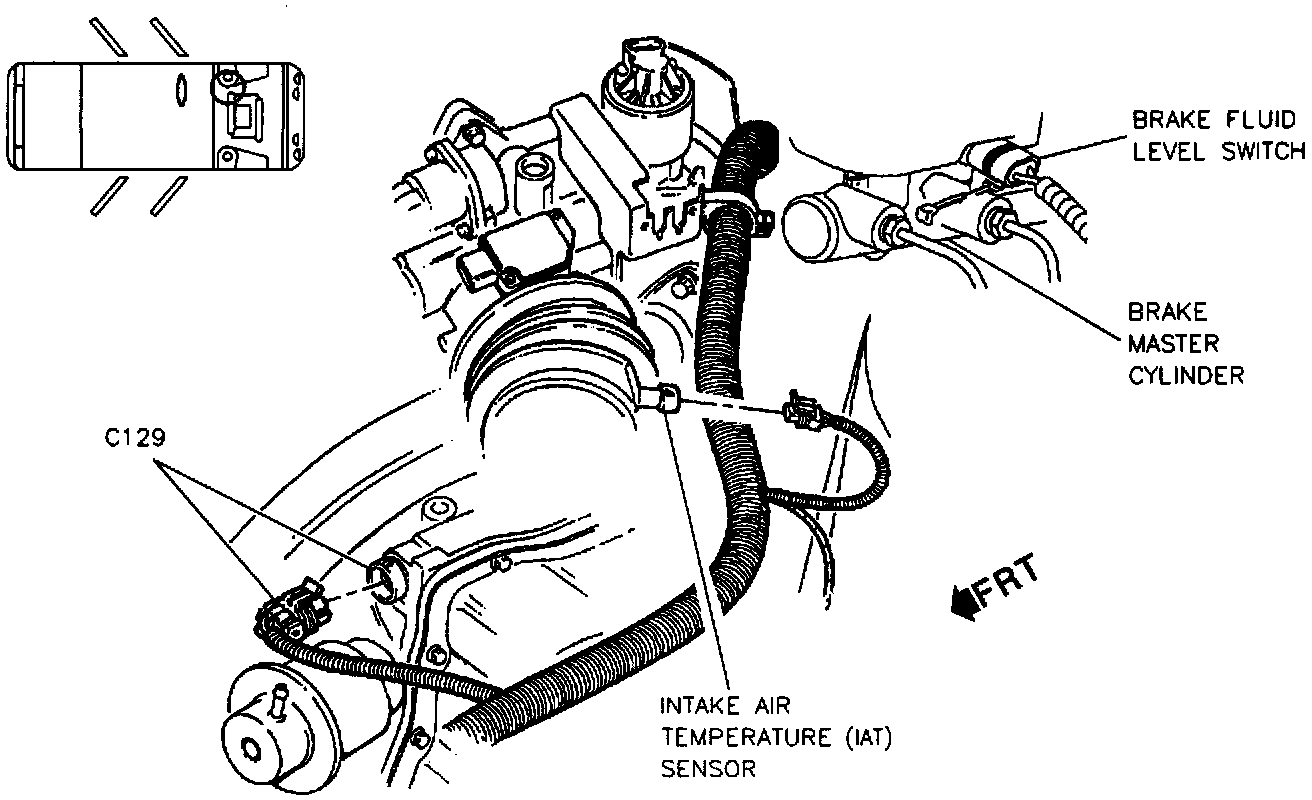

LH Of The Engine Compartment:

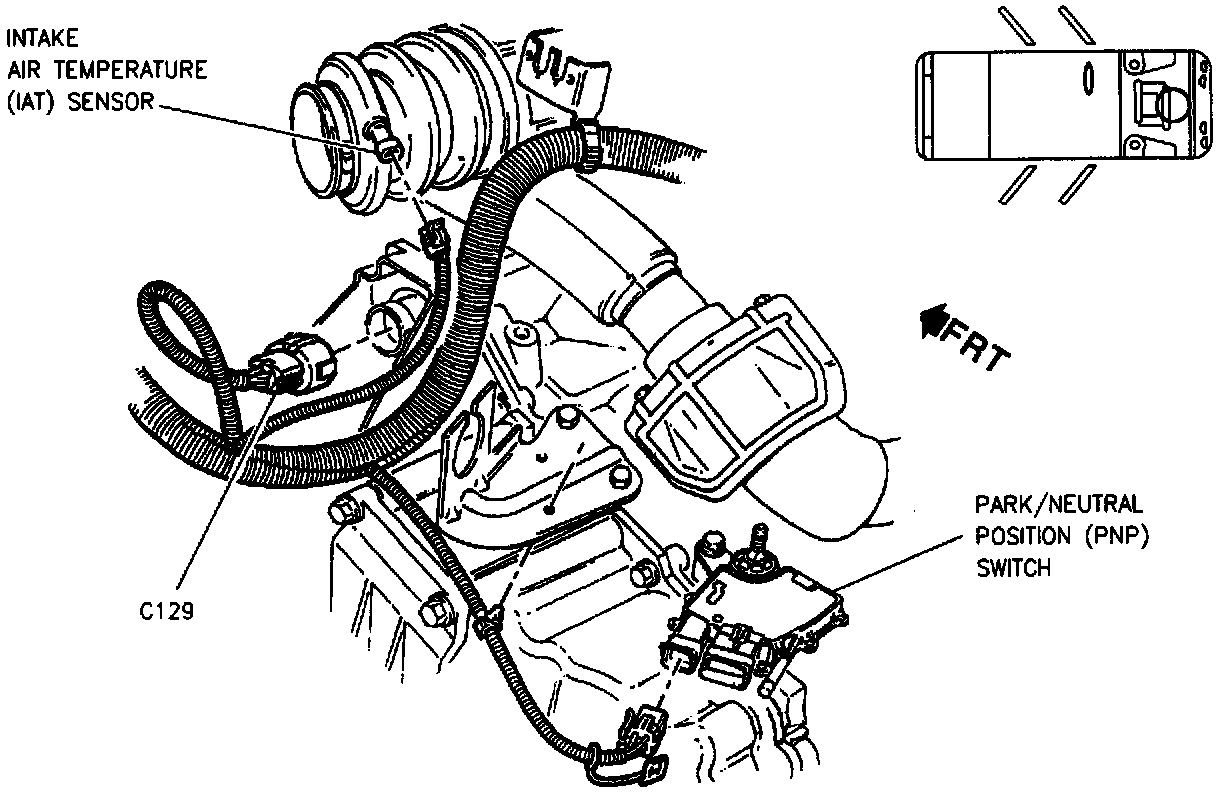

LH Of The Transaxle:

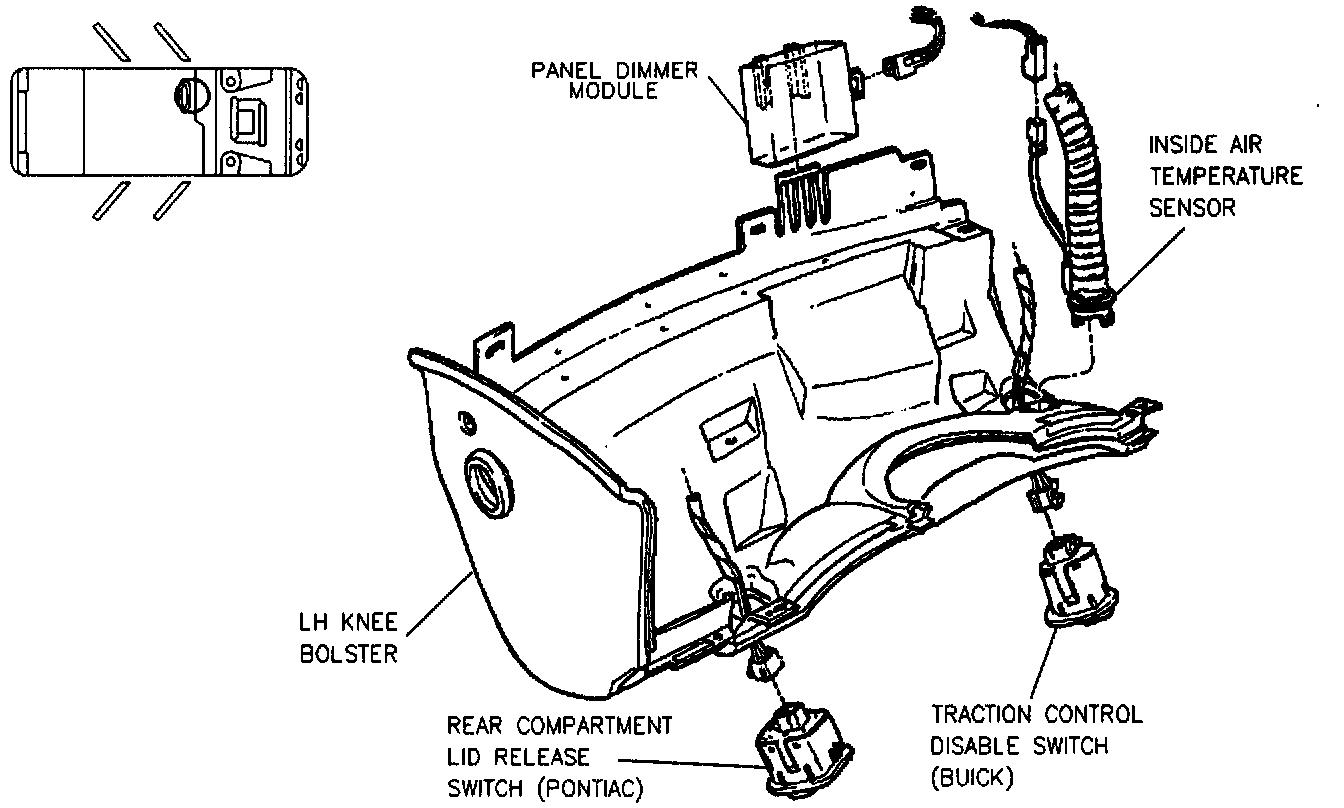

Under The LH Of The Instrument Panel:
