Home >> Oldsmobile >> 1998 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Data Link Connector

Data Link Connector

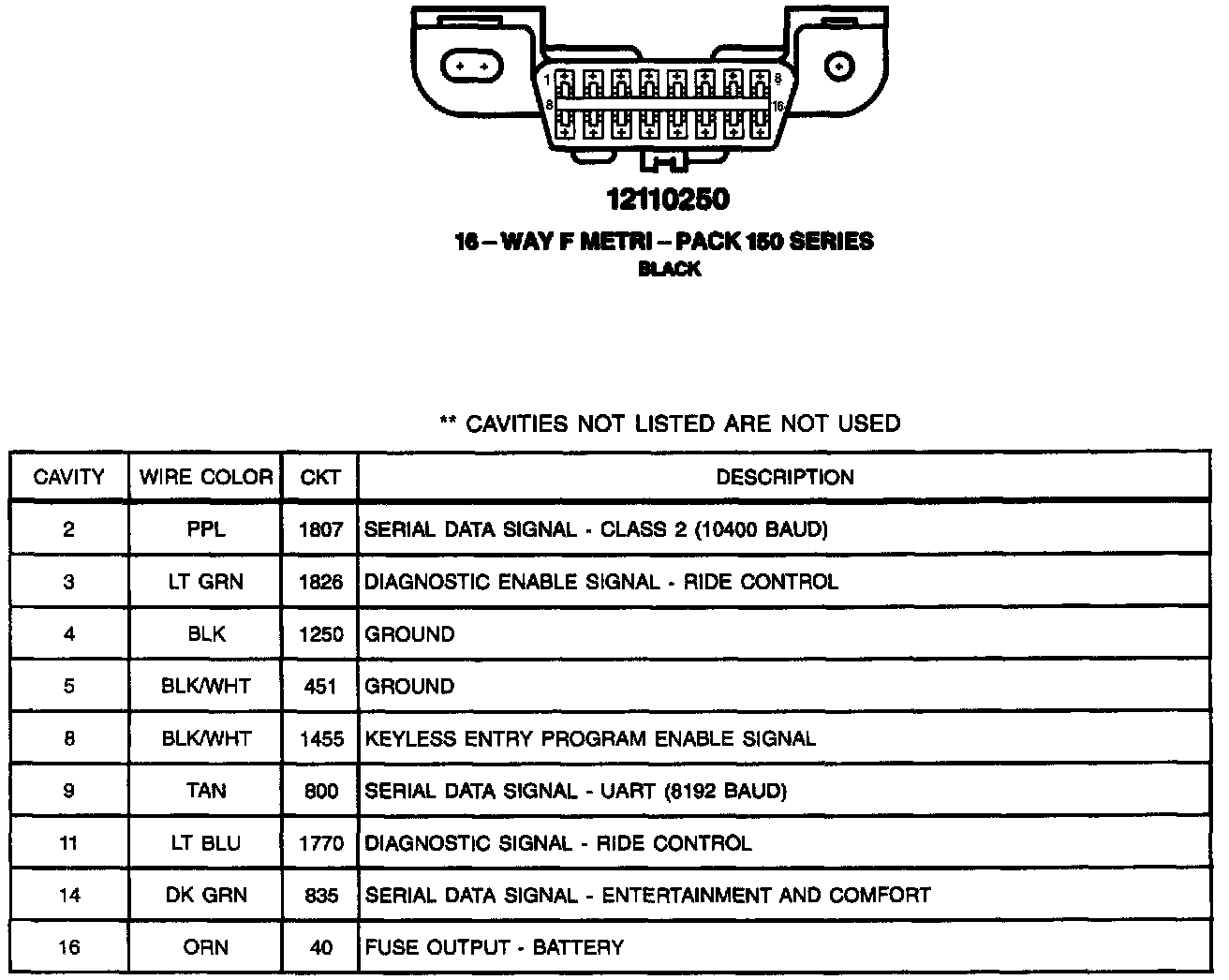

Data Link Connector (DLC) Connector Face:

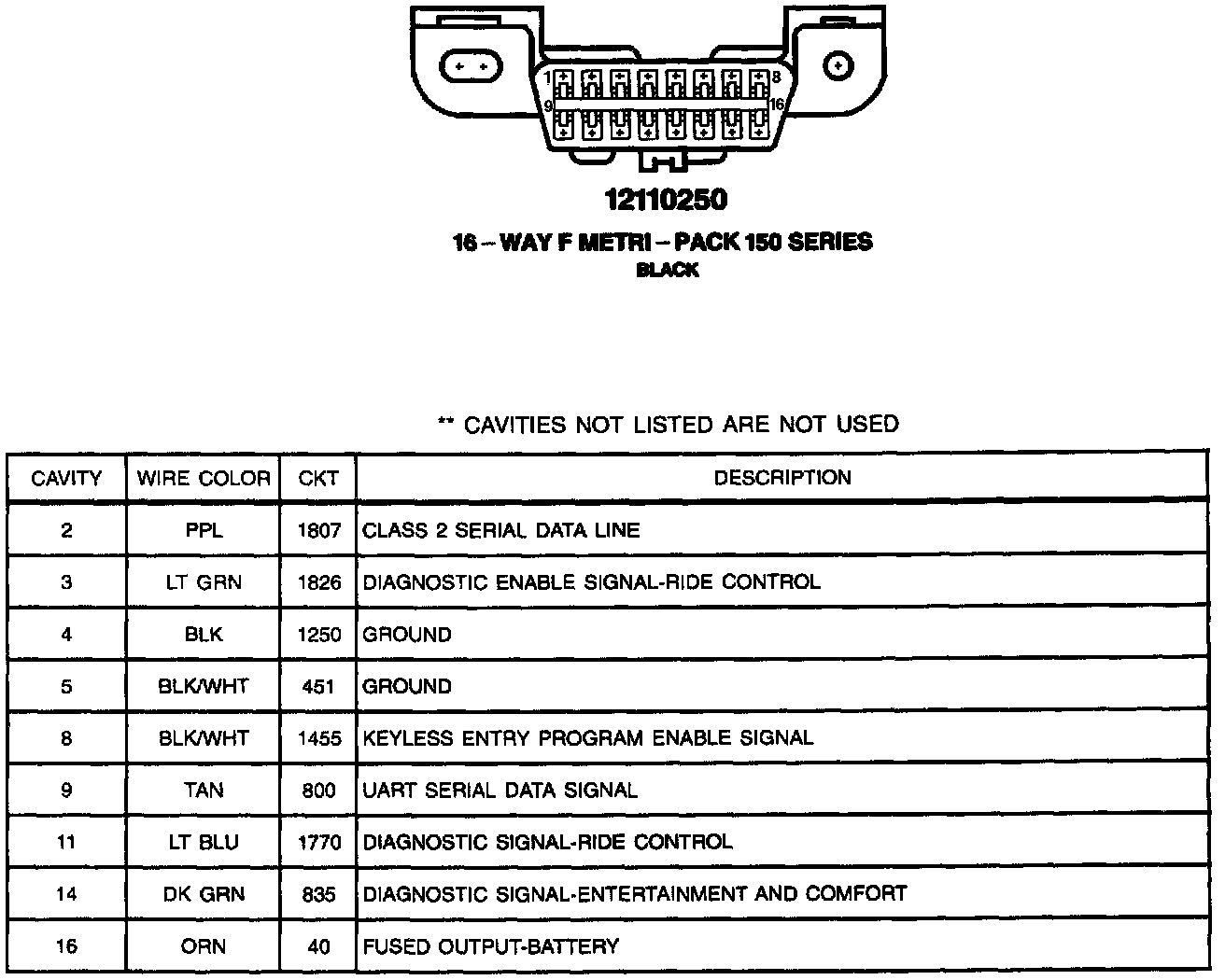

Data Link Connector (DLC):
