Information Bus

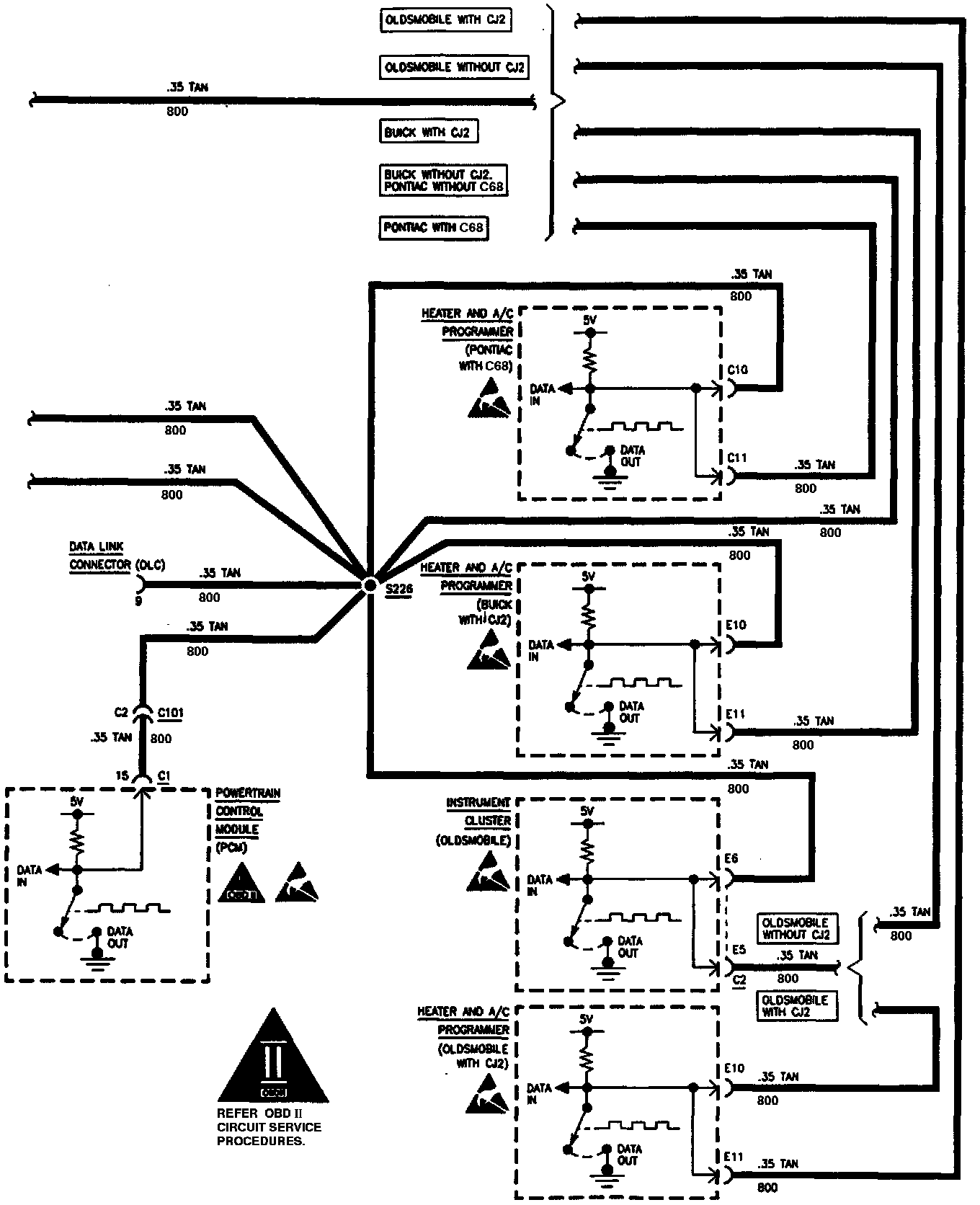

UART Serial Data Line (Part 1 Of 2):

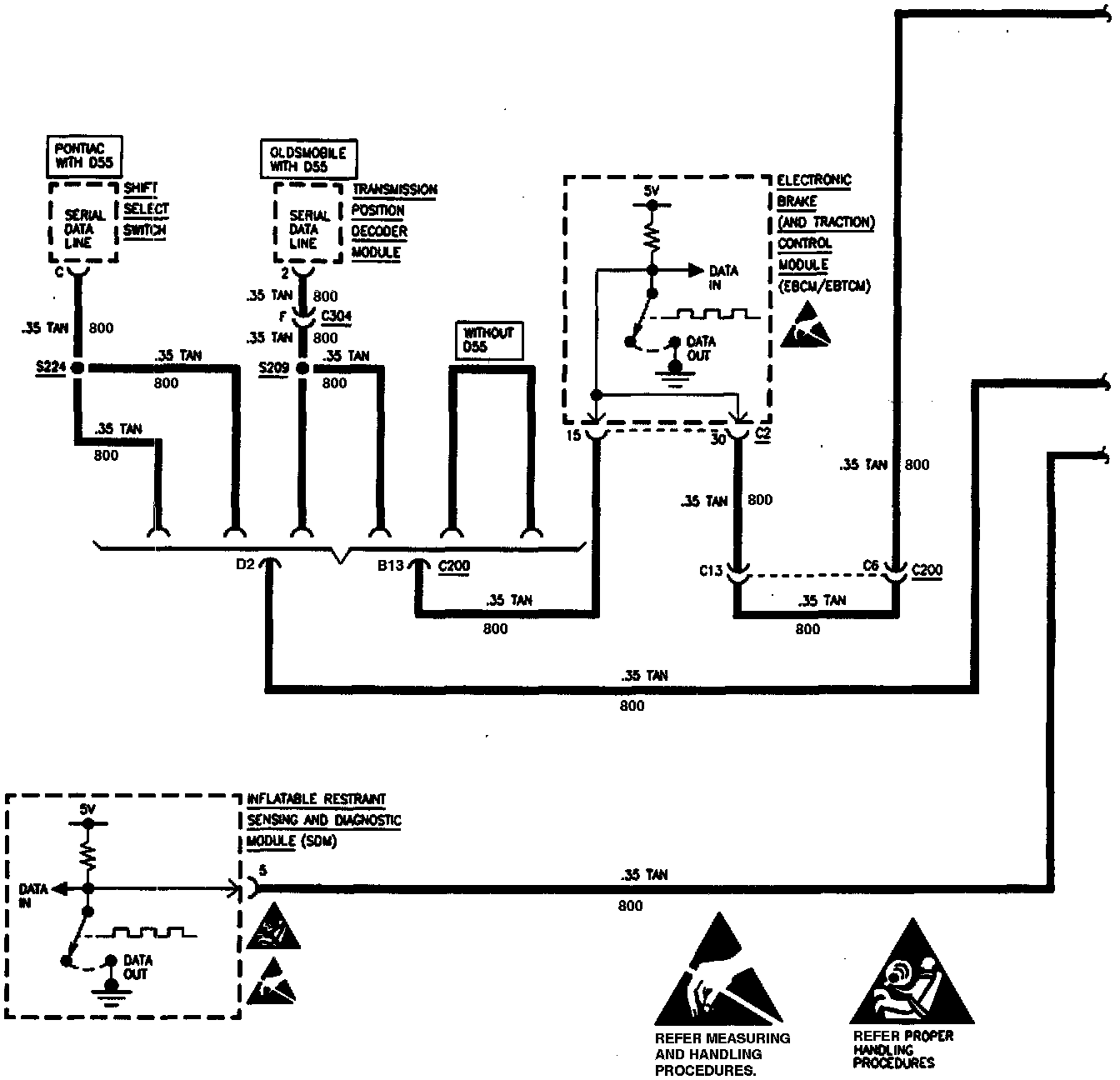

UART Serial Data Line (Part 2 Of 2):

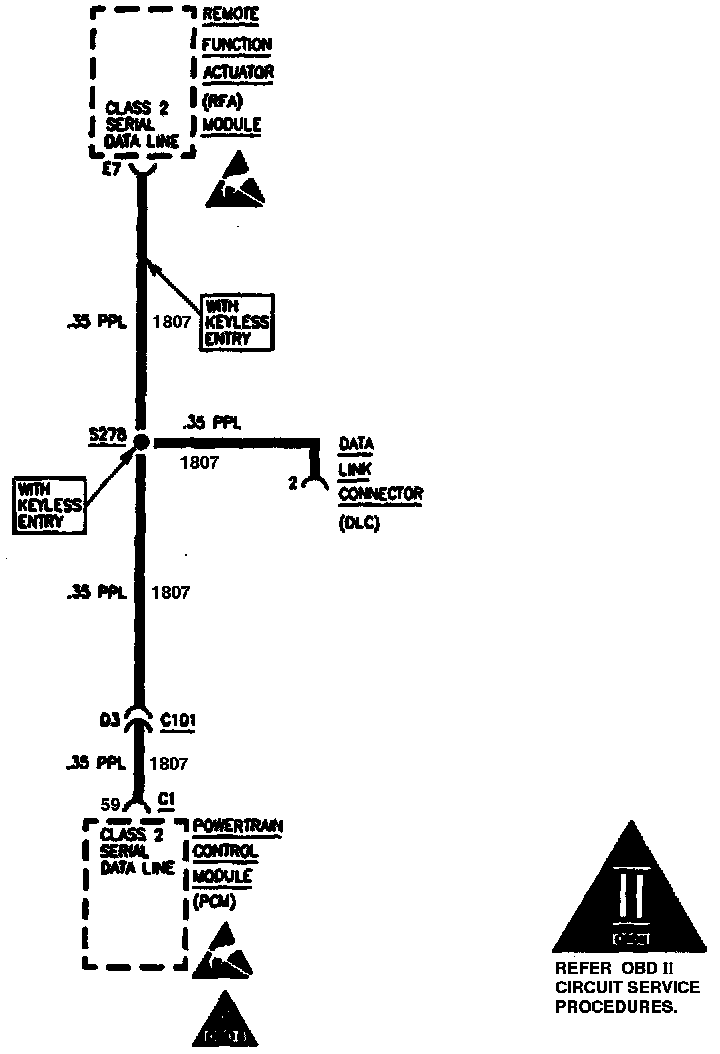

Class 2 Serial Data Line:

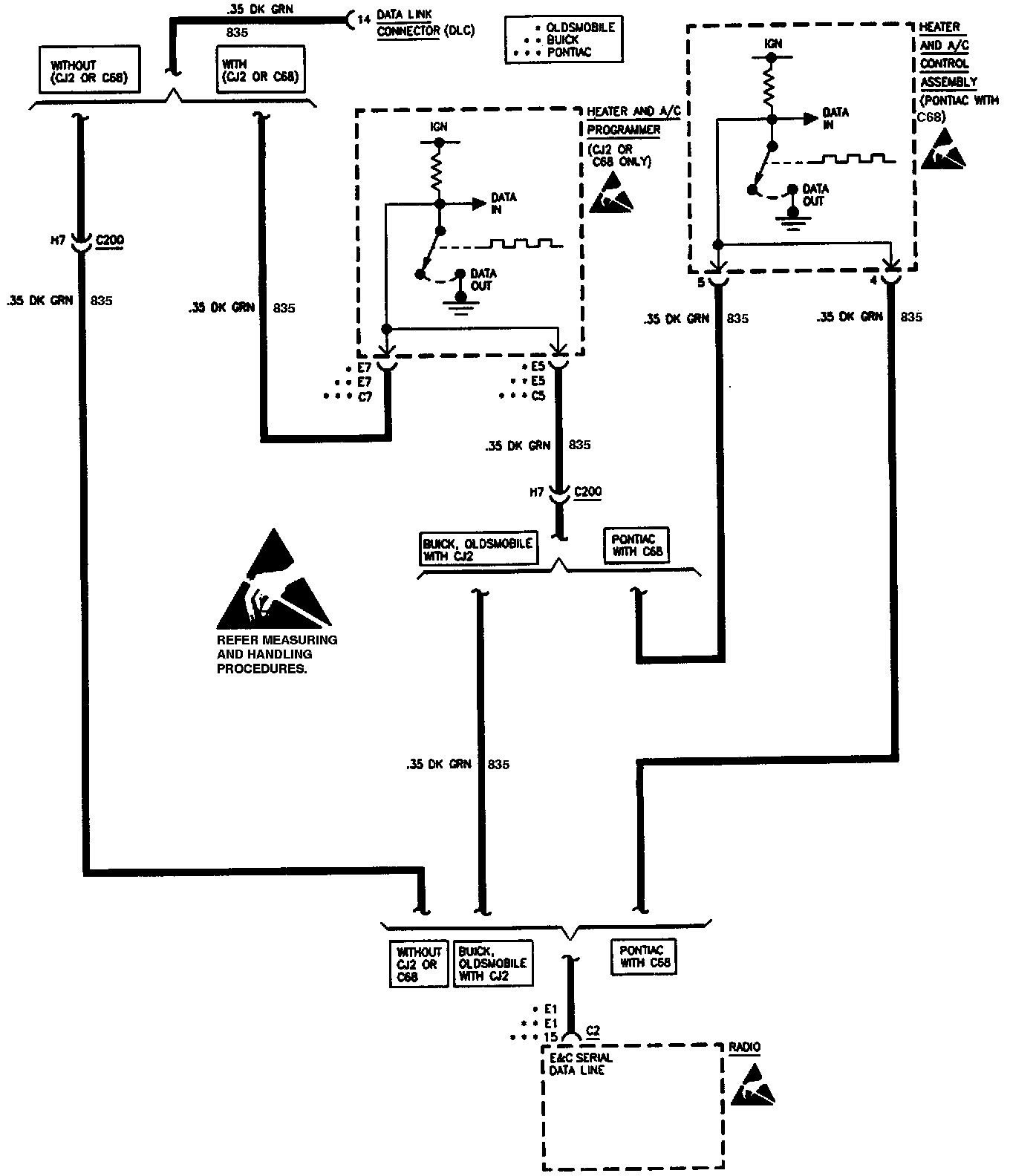

E & C Serial Data Line:
