Home >> Oldsmobile >> 1998 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater & A/C Control Assembly >> With CJ2

With CJ2

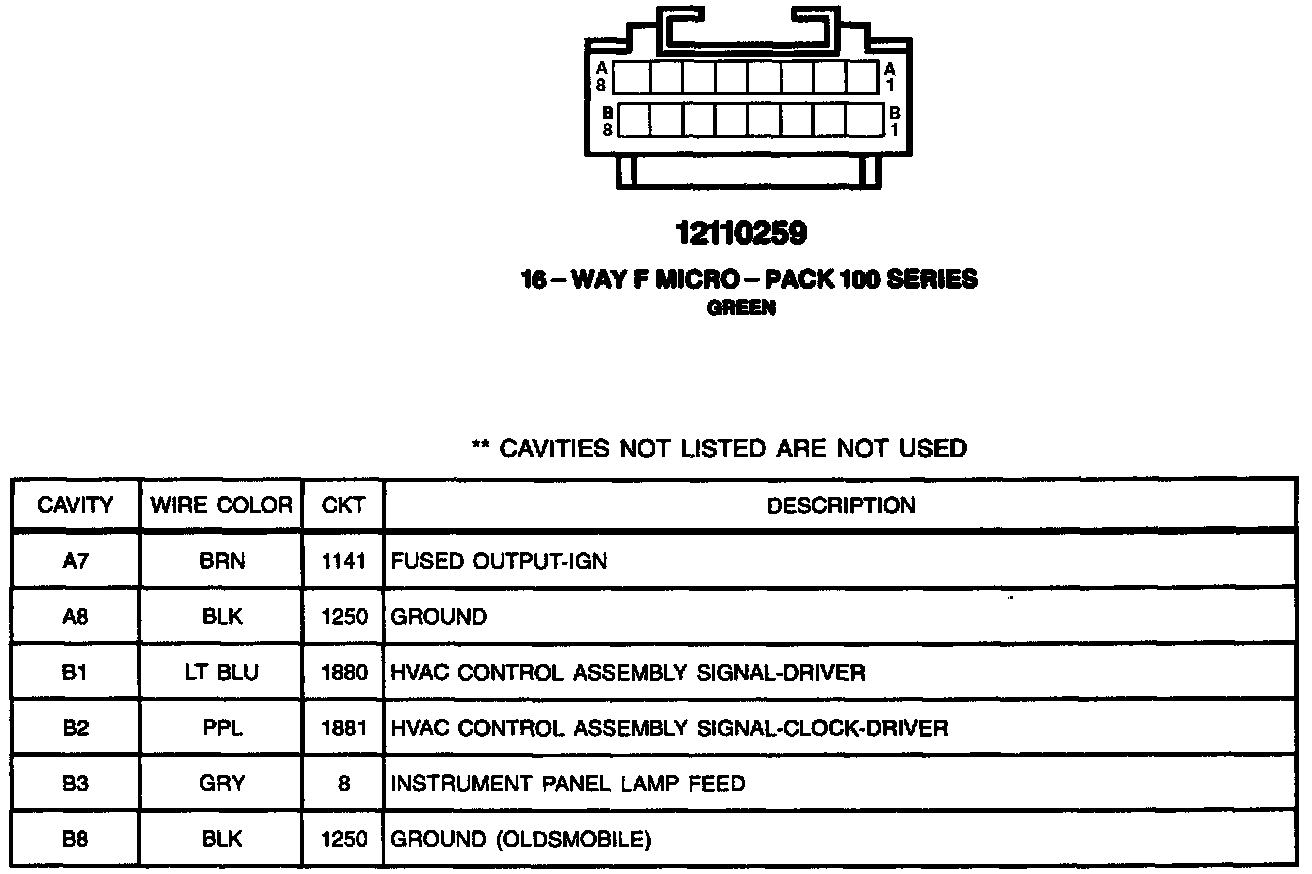

Heater & A/C Control Assembly: With CJ2:
