Theft Deterrent Relay Replacement

REMOVAL PROCEDURE

CAUTION: Refer to SIR Handling Caution in Cautions and Notices.

1. Disable the SIR system.
2. Remove the instrument panel (IP) assembly.
3. Remove the following components from the stud:
^ The fastener

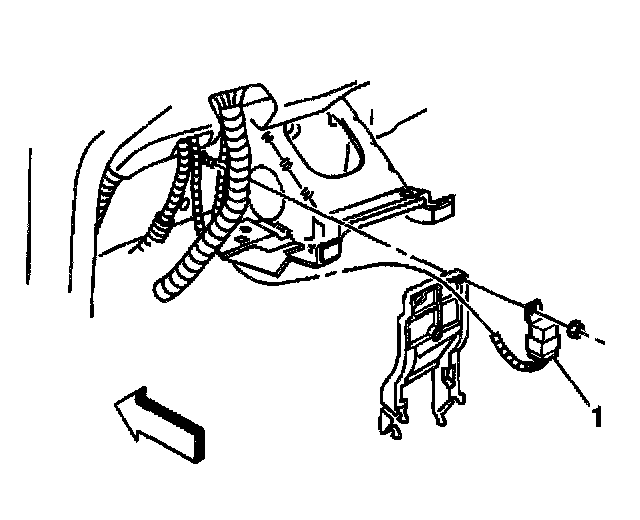

^ The starter enable relay (1)
4. Disconnect the starter enable relay connector.
5. Remove the starter enable relay (1).

INSTALLATION PROCEDURE
1. Install the starter enable relay connector. Position the relay (1) over the stud.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the fastener to the stud.

Tighten
Tighten the fastener to 4.5 Nm (40 lb in).

3. Install the IP assembly.
4. Enable the SIR system.
