Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Regulator
>>
Locations
>>
Connector Locations
Connector Locations

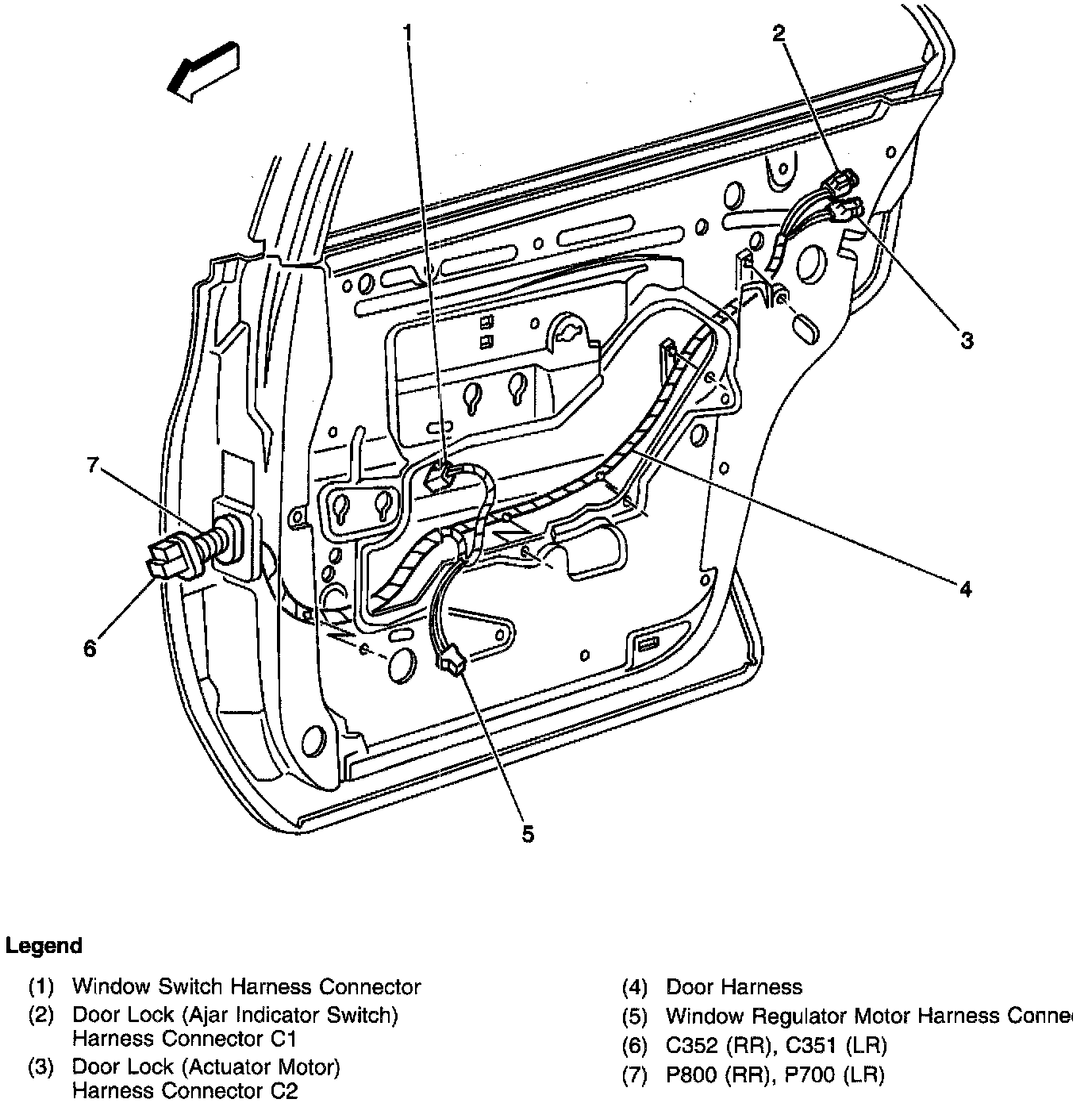

RR Door Wiring Harness - LR Similar:

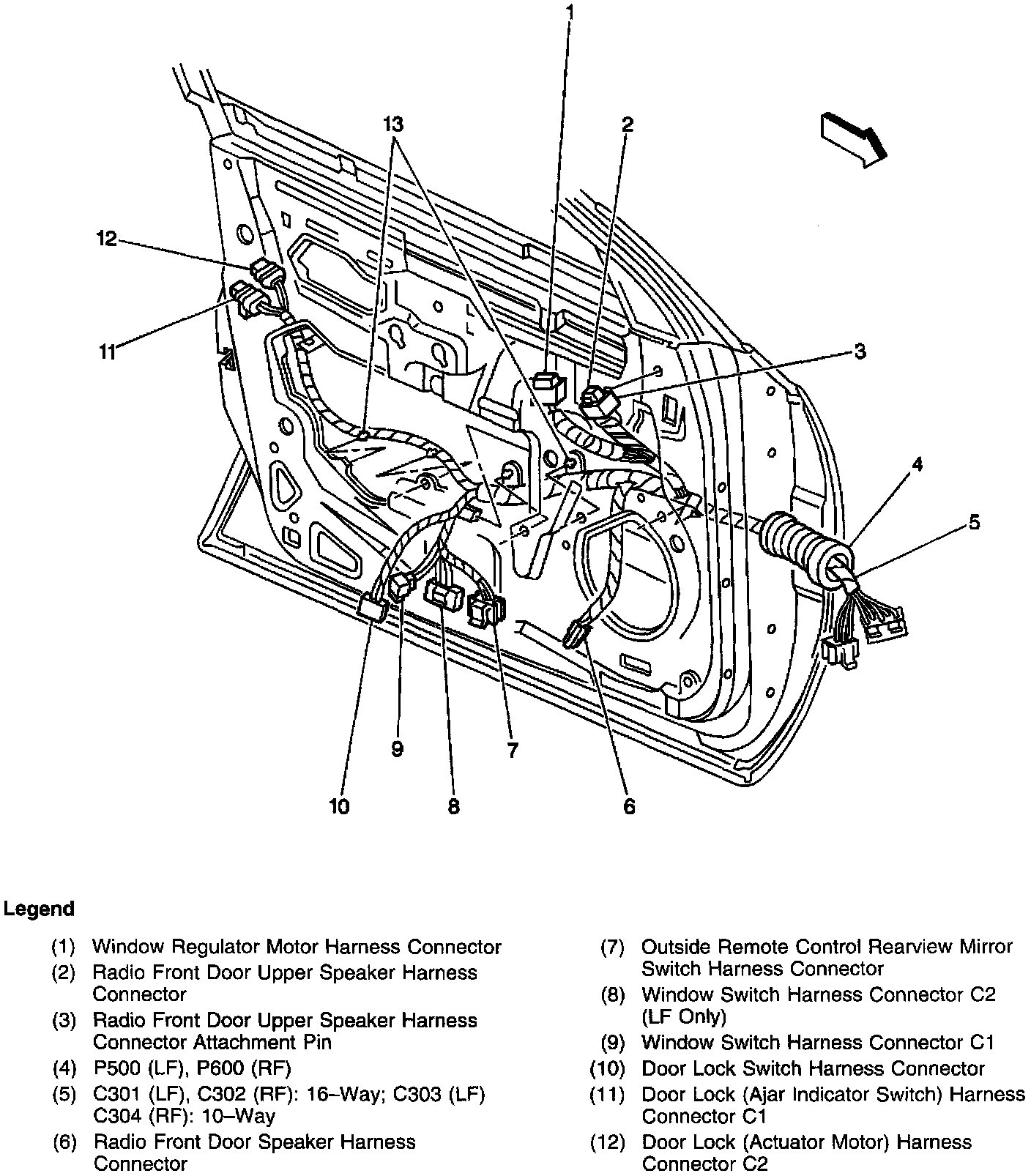

LF Door Wiring Harness View: RF Similar:
