Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold >> Intake Manifold Torque and Sequence Specifications >> Lower Intake Manifold

Lower Intake Manifold







Apply GM P/N 12345382 threadlocker or equivalent on the threads.

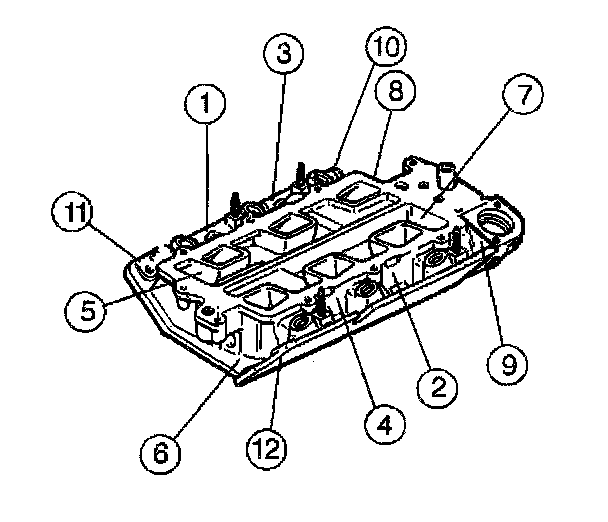

Tighten the lower intake manifold bolts in sequence to 15 Nm (11 ft. lbs.).
