Ignition Coil: Service and Repair

Ignition Coil(s) Replacement

Removal Procedure
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect in engine electrical.
2. Disconnect the spark plug wires from the coil assemblies (note the position of the wires before removal).

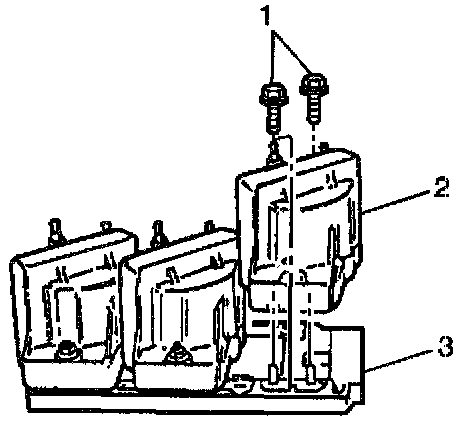

3. Remove 6 screws (1) securing the coil assemblies to the ignition control module.
4. Remove the coils (2) from the ignition control module (3).

Installation Procedure
1. Attach the coils to the ignition control module.

Notice: Refer to Fastener Notice in Cautions and Notices.




2. Install 6 ignition coil attaching screws
- Tighten the screws to 4-5 N.m (40 lb in).
3. Connect the spark plug wires.
4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect in engine electrical.
