Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

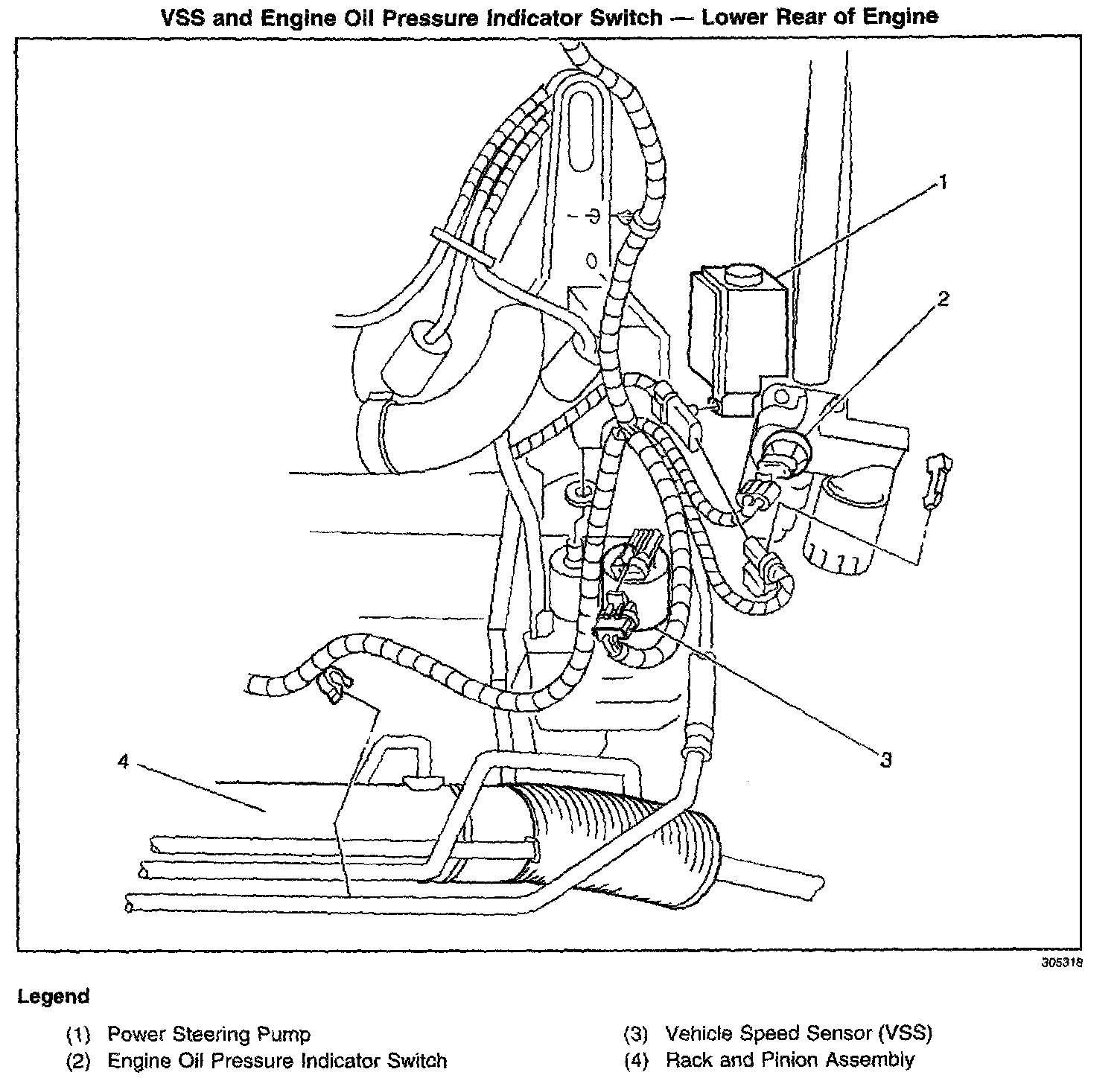

Oil Pressure Sensor: Locations

Locations View:






RH lower rear of engine, above transaxle
