Connector Locations

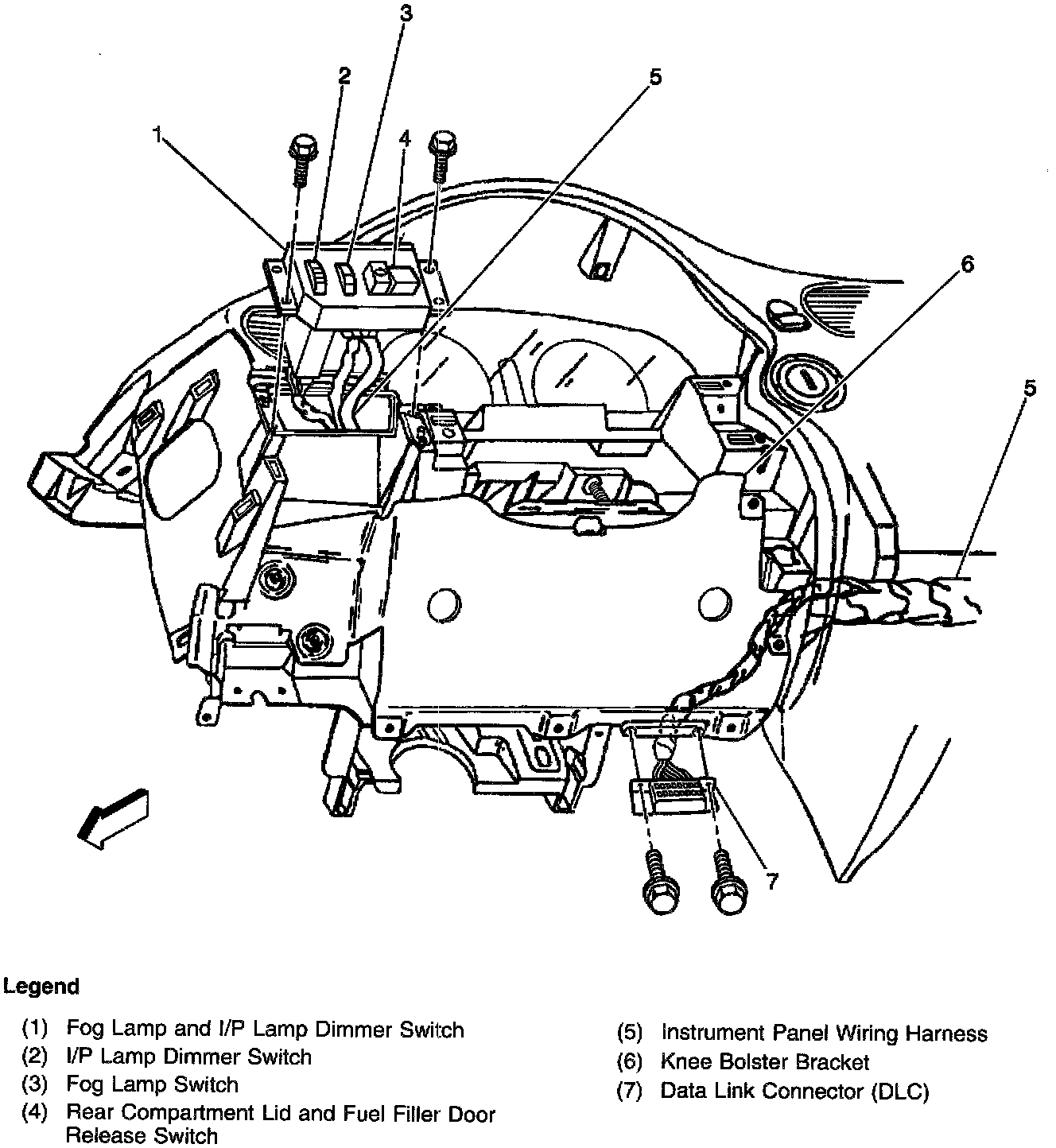

DLC, Fog Lamp SW, I/P Dimmer SW & Rear Compartment Lid And Fuel Filer Door Release SW:
Below LH side of I/P, right of steering column
