Air Temperature Sensor ( Ambient / Intake ): Service and Repair

IAT Sensor Replacement

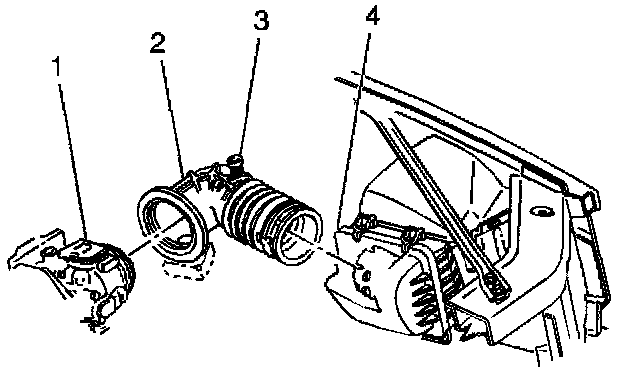

The IAT sensor (3) is mounted in the rear air intake duct (2).

Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the IAT sensor electrical connector.
3. Grasp and remove the IAT sensor with a twisting and pulling motion (3).





Installation Procedure

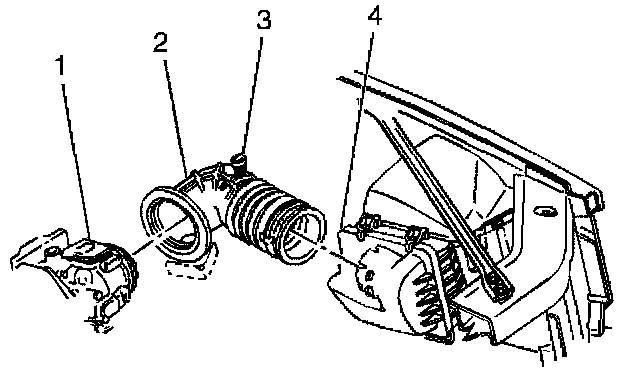

1. Position and insert the IAT sensor (3) into the rear air intake duct (2).
2. Connect the IAT sensor electrical connector.
3. Connect the negative battery cable.
