Instrument Panel Fuse Block

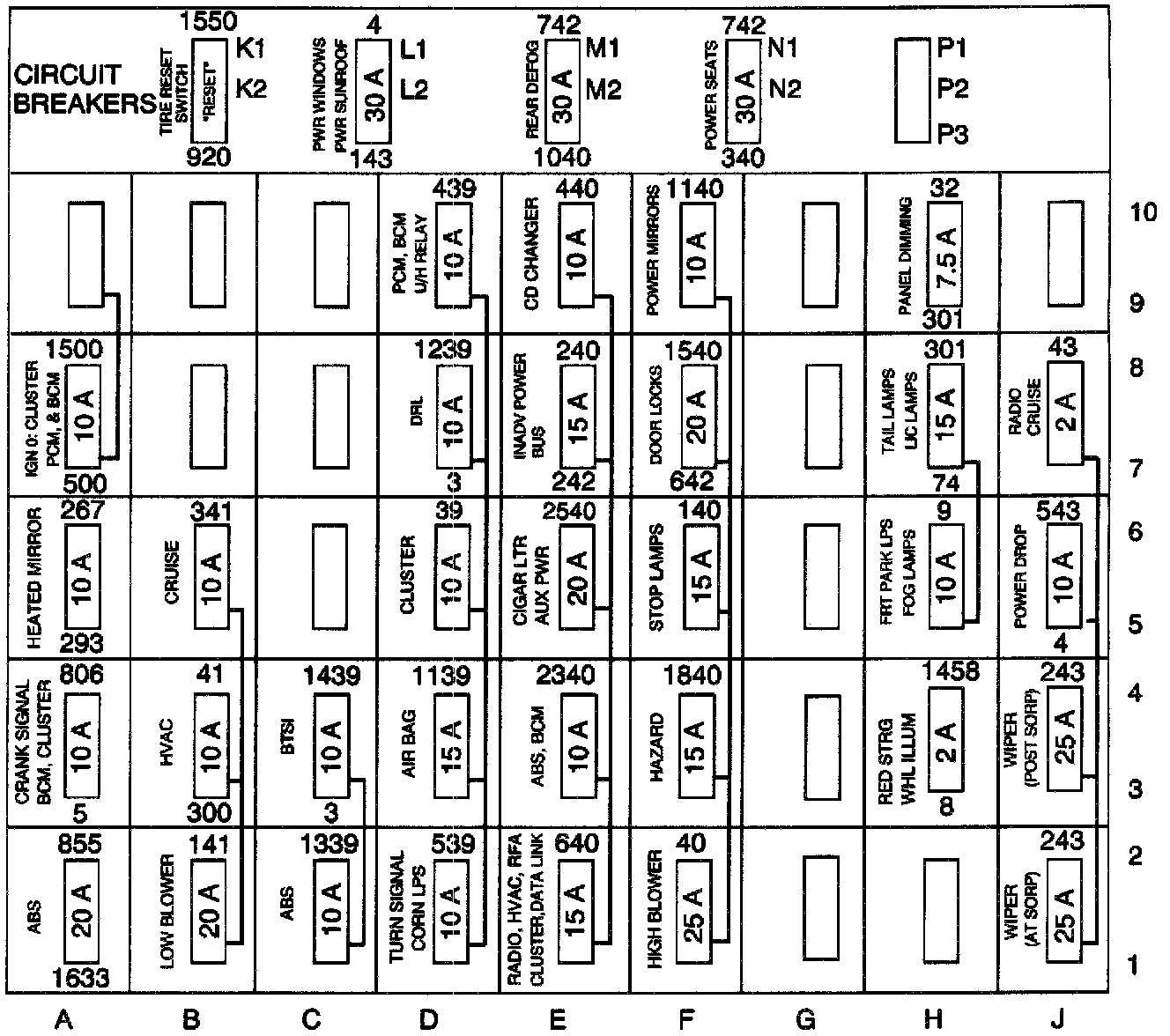

Fuse Block Details Schematics: Instrument Panel Fuse Block:



RH Side Of Instrument Panel Compartment:
