Radio Antenna Module

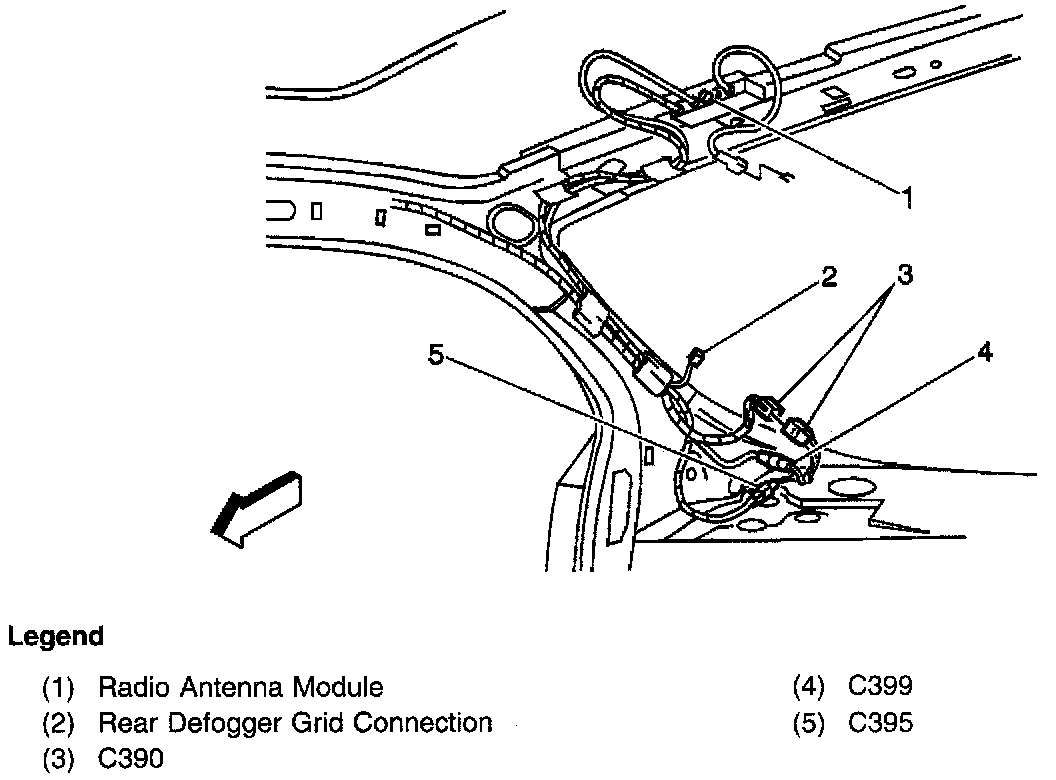

Radio Antenna Module, C390, C395 & C399 - RH C-Pillar:
Mounted to rear window header panel, behind headliner (w/ RPO U77)
