Compressor Clutch Relay: Service and Repair

Removal Procedure

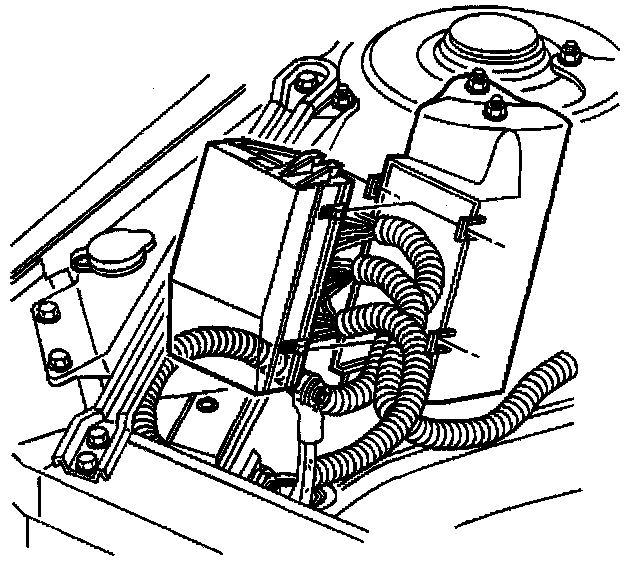

1. Remove the accessory wiring junction block cover located on the inside right hand fender panel by unscrewing the center knob.

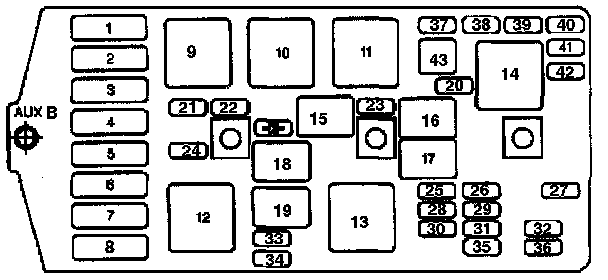

2. Remove the compressor control relay (15) from the electrical center.

Installation Procedure





1. Install the compressor control relay (15) into the electrical center.





2. Install the accessory wiring junction block cover located on the inside right hand fender panel by tightening the center knob.
