Power Distribution

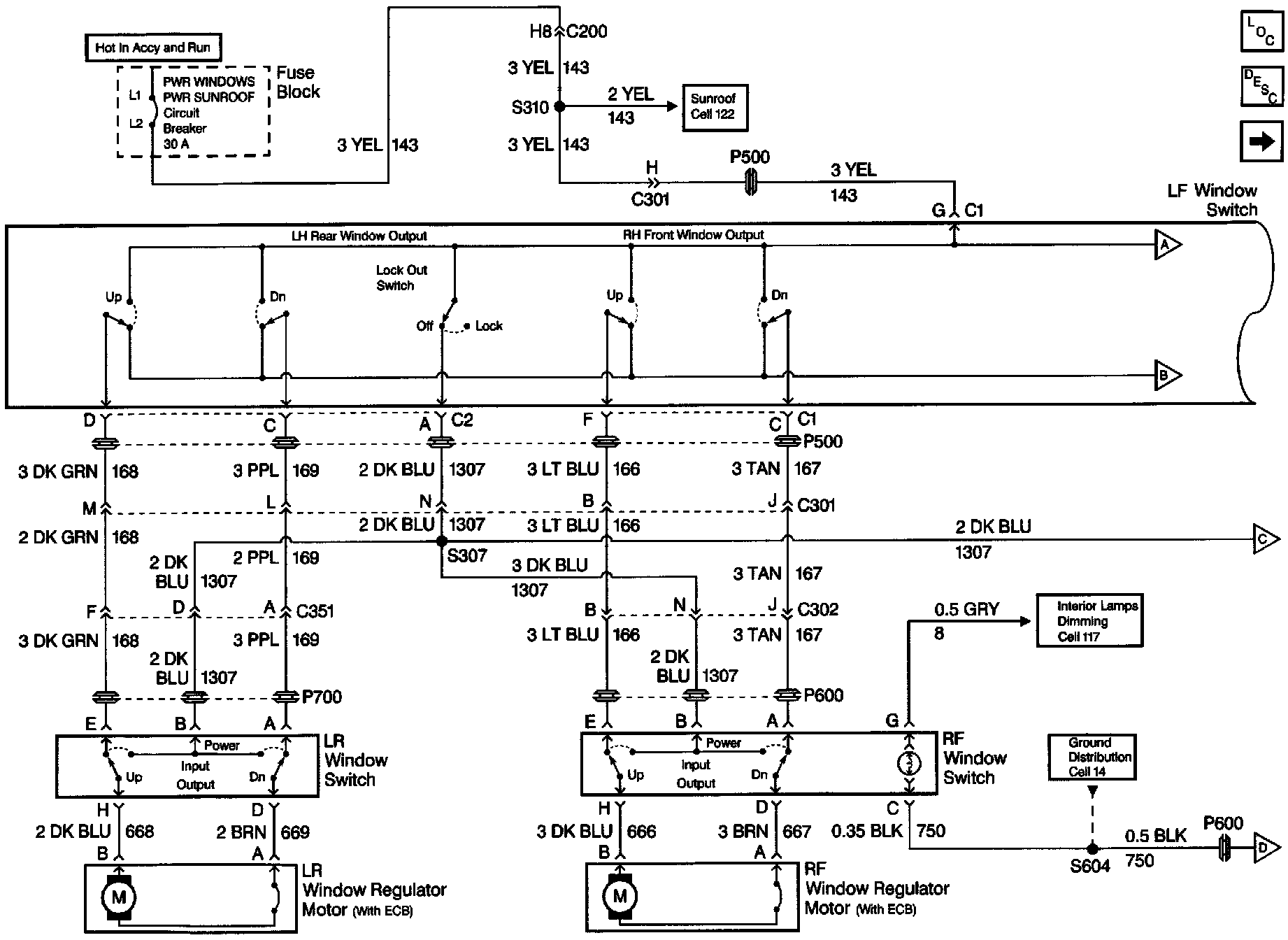

Power Window Schematics: Power Distribution, Window SW & Window Regulator Motors:
