Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Window Regulator
Window Regulator

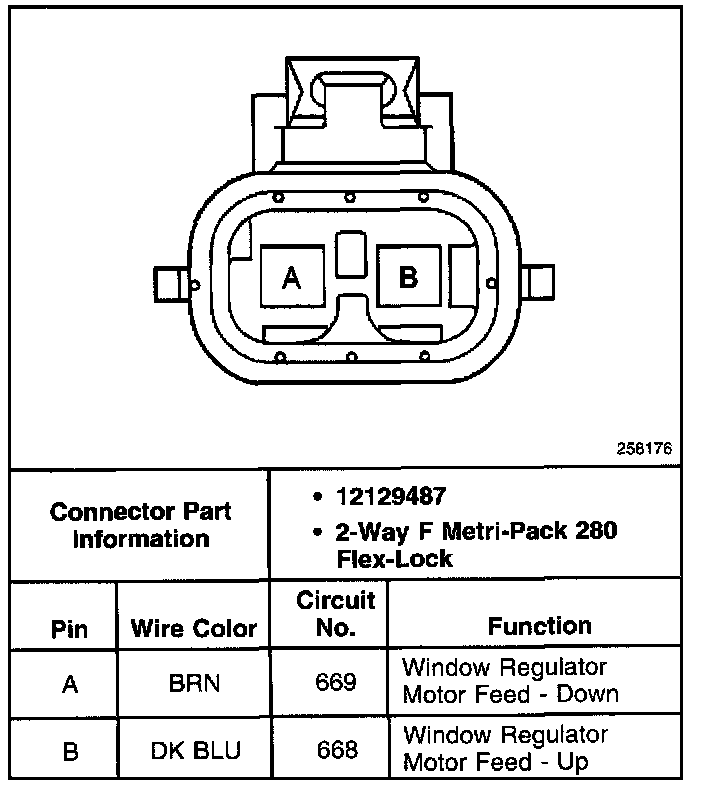

Window Regulator Motor: LF:

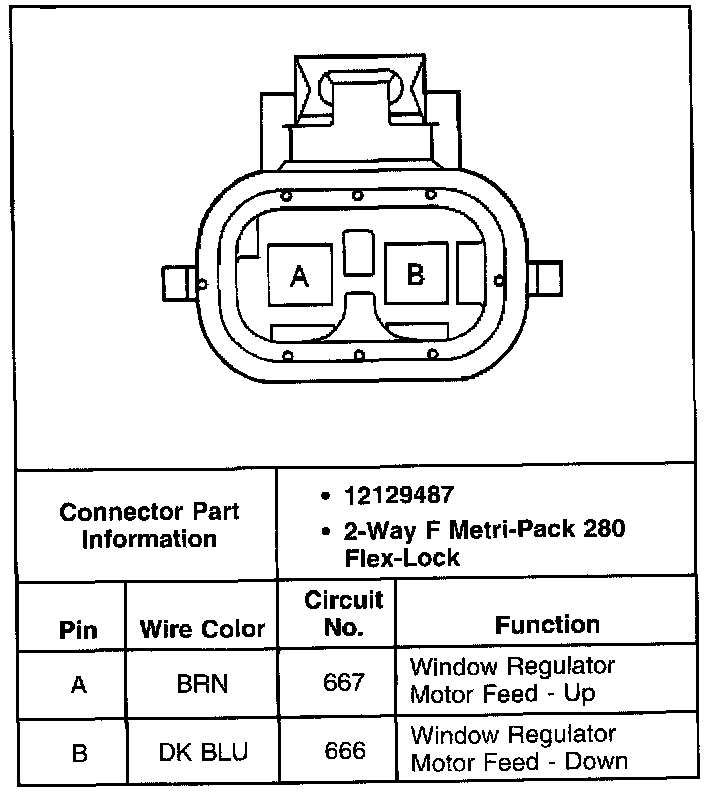

Window Regulator Motor: RF:

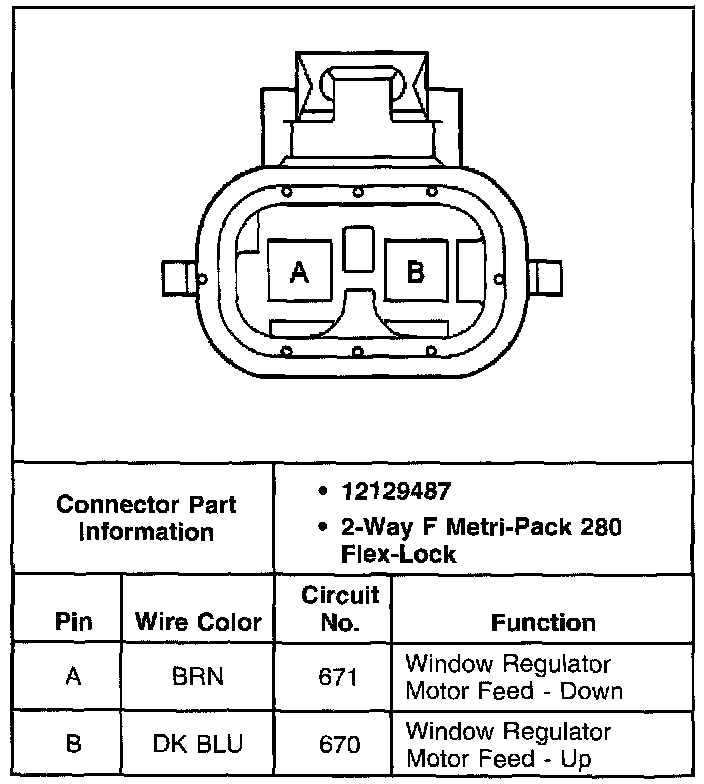

Window Regulator Motor: LR:

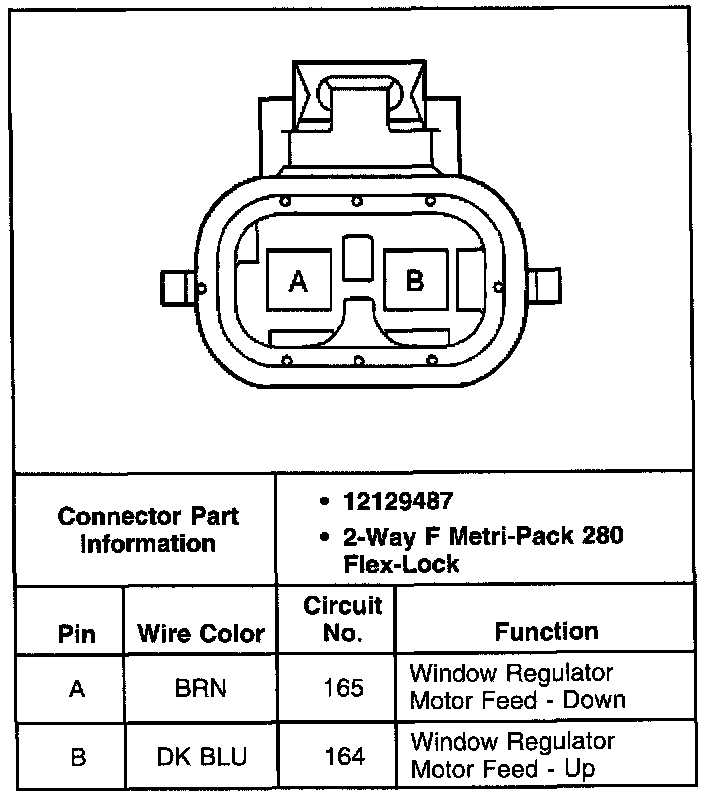

Window Regulator Motor: RR:
