FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Electronic Brake Control Relay
Electronic Brake Control Relay

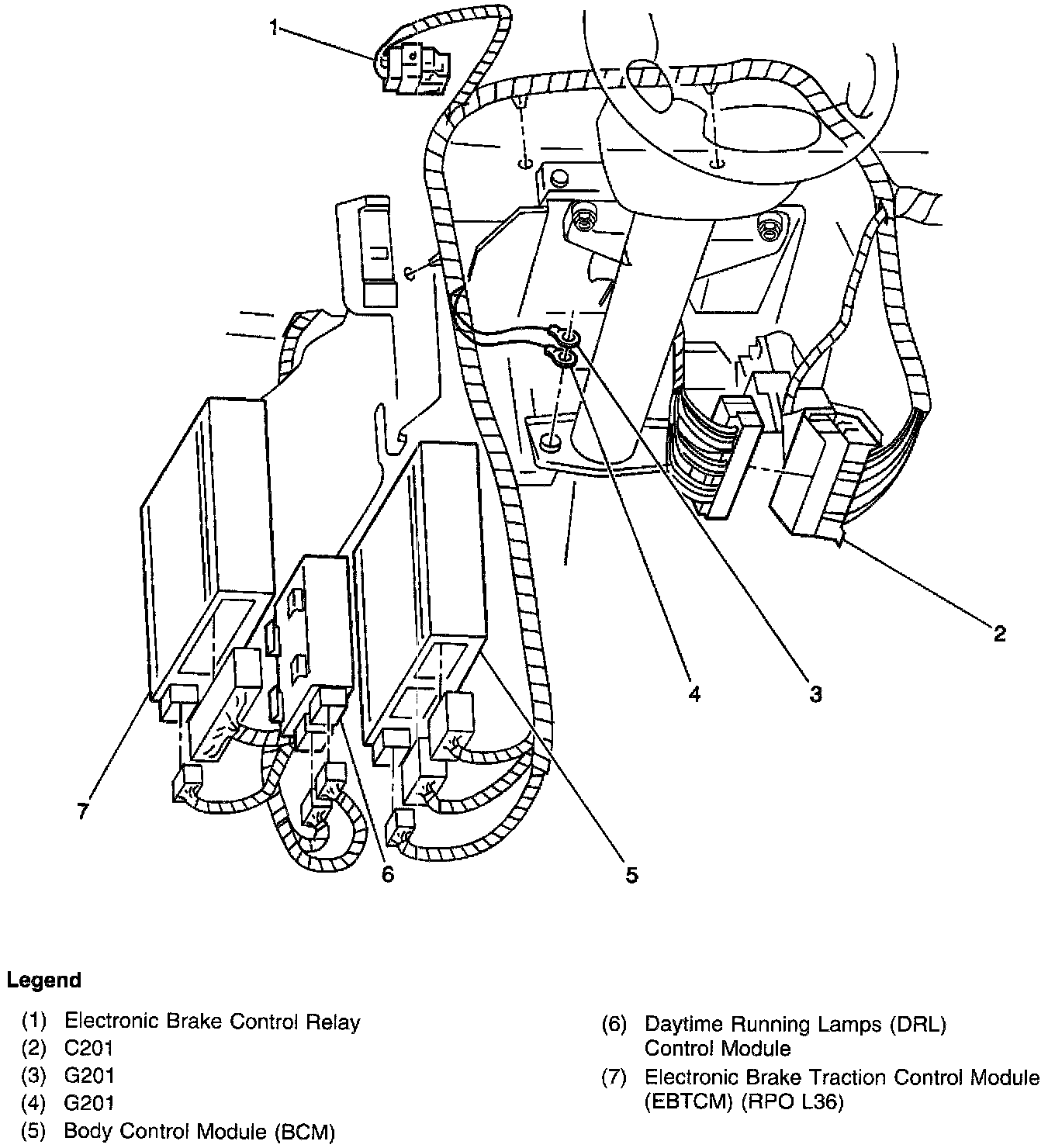

Electronic Brake Control Relay, C201, G201, BCM, DRL Module & EBTCM:
Below LH side of I/P, mounted to multipurpose bracket
