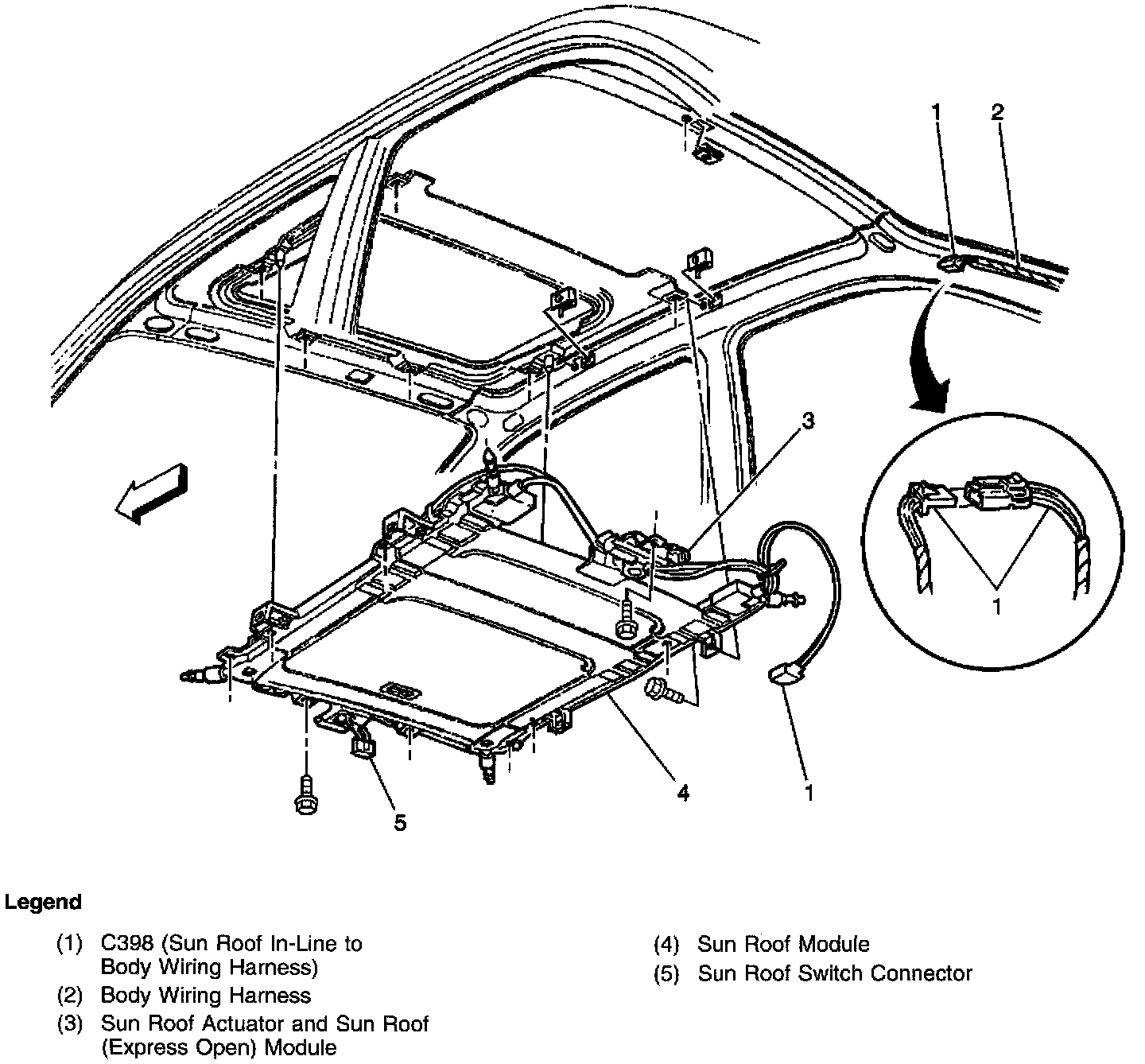

Sun Roof Module
Roof:
RH rear corner of sunroof module
RH rear corner of sunroof module (w/ RPO CF5 Only)
