Rear Window Panel

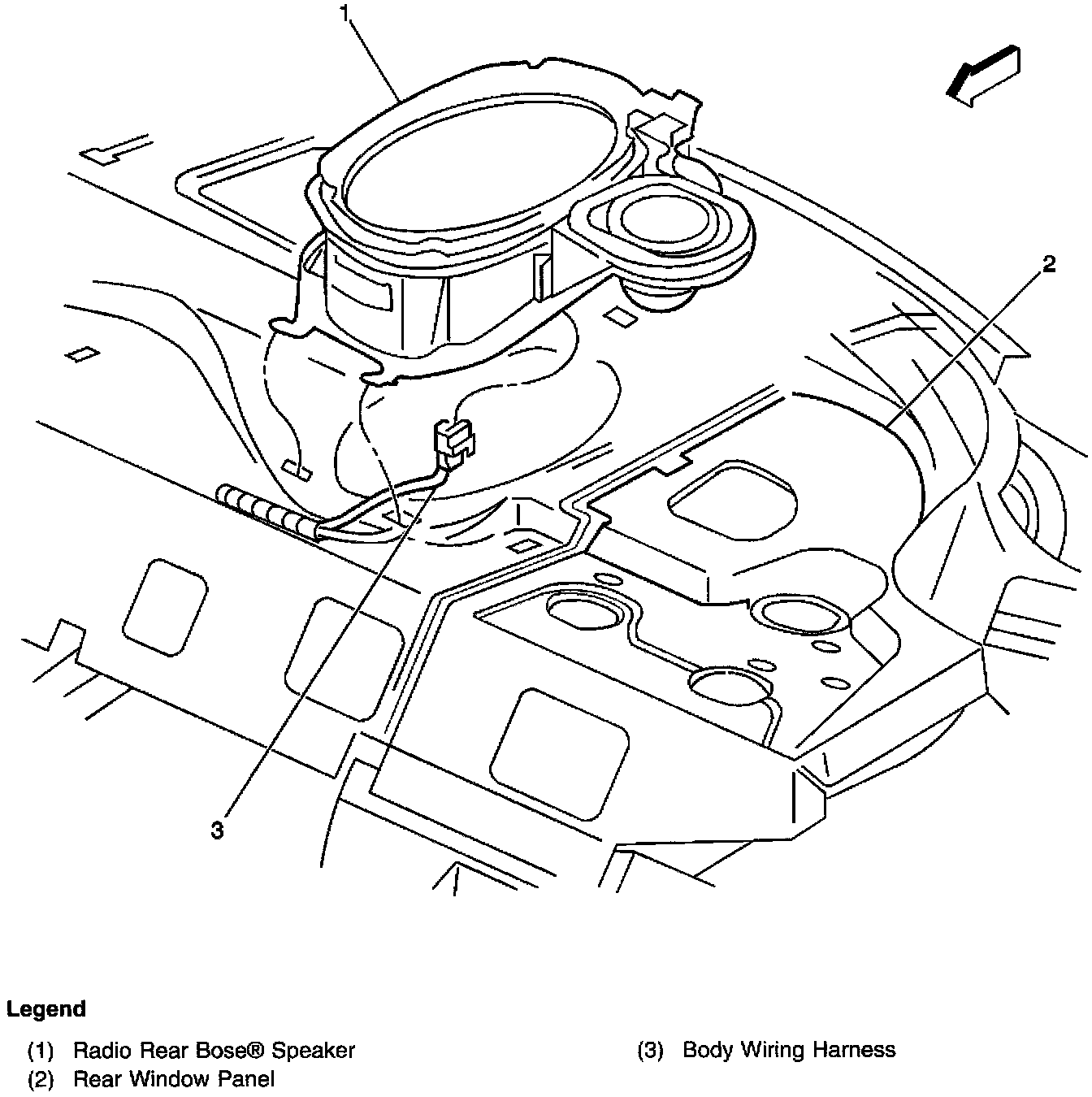

Bose(R) Speaker (w/ RPO U85 Only) - LH Side Of Rear Window Panel (RH Side Similar):

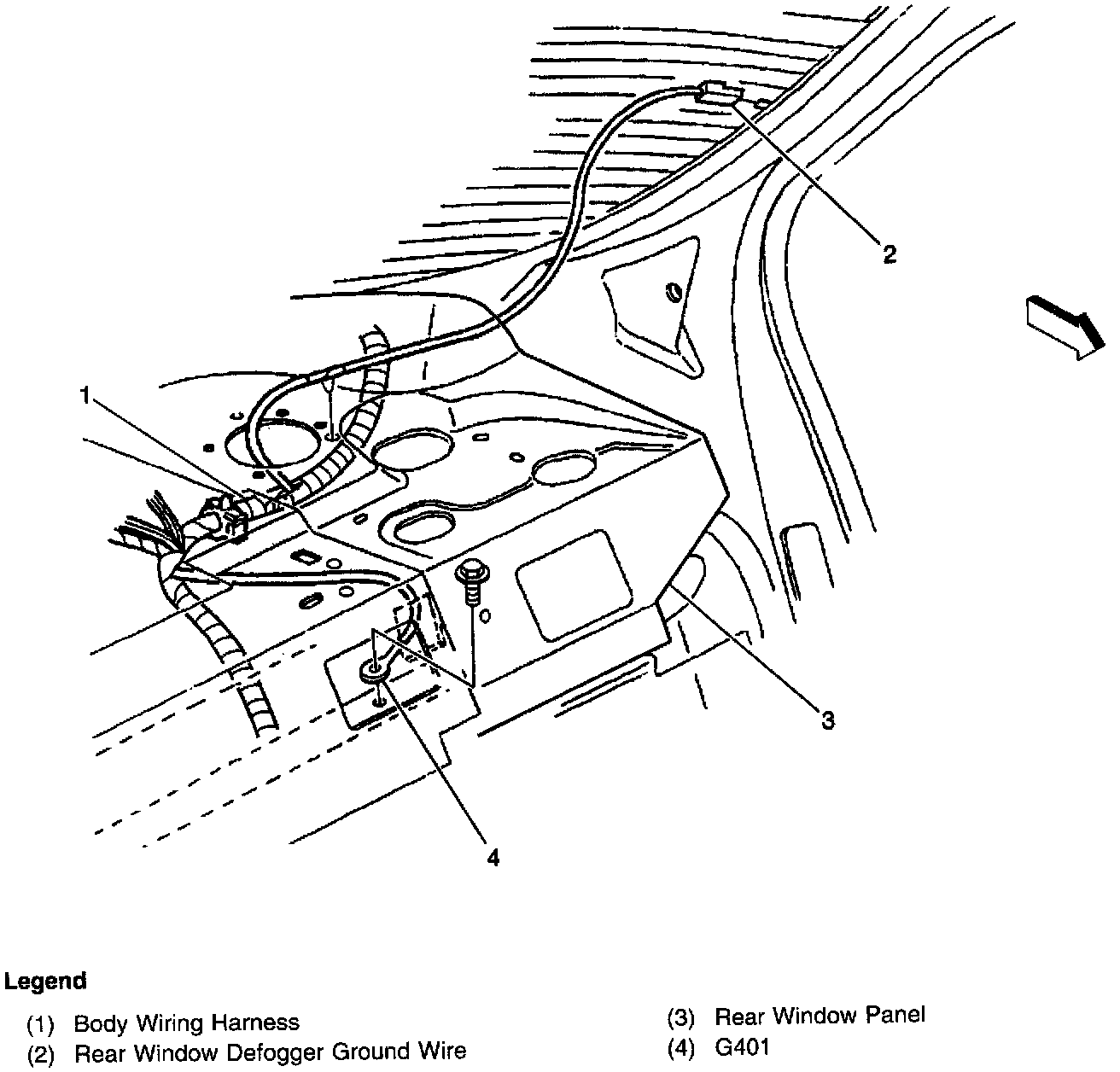

G401 - LH Side Of Rear Window Panel:
