Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Power Steering Pump

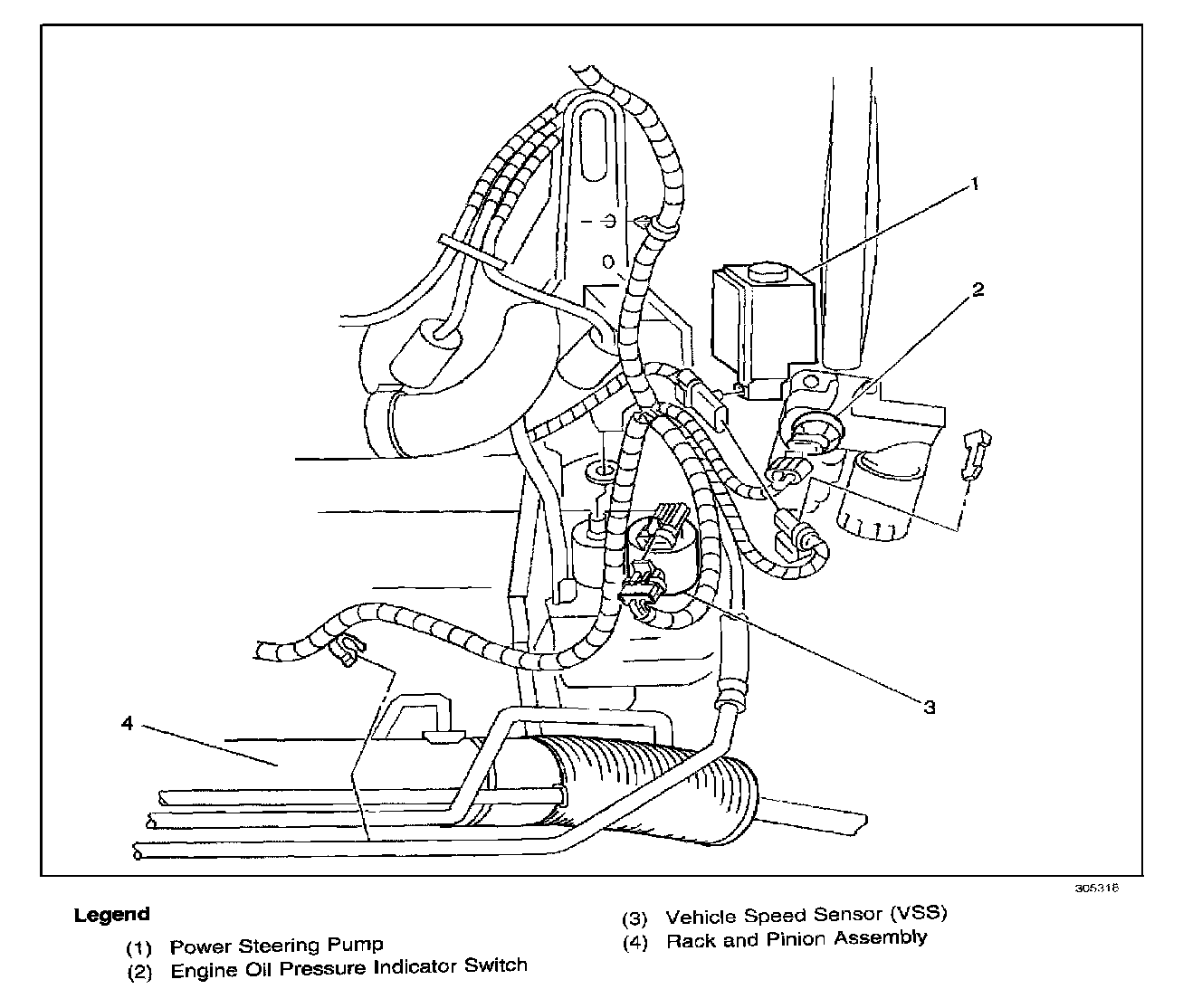

Power Steering Pump

VSS And Engine Oil Pressure Indicator Switch - Lower Rear Of Engine:
