Instrument Cluster
Instrument Cluster

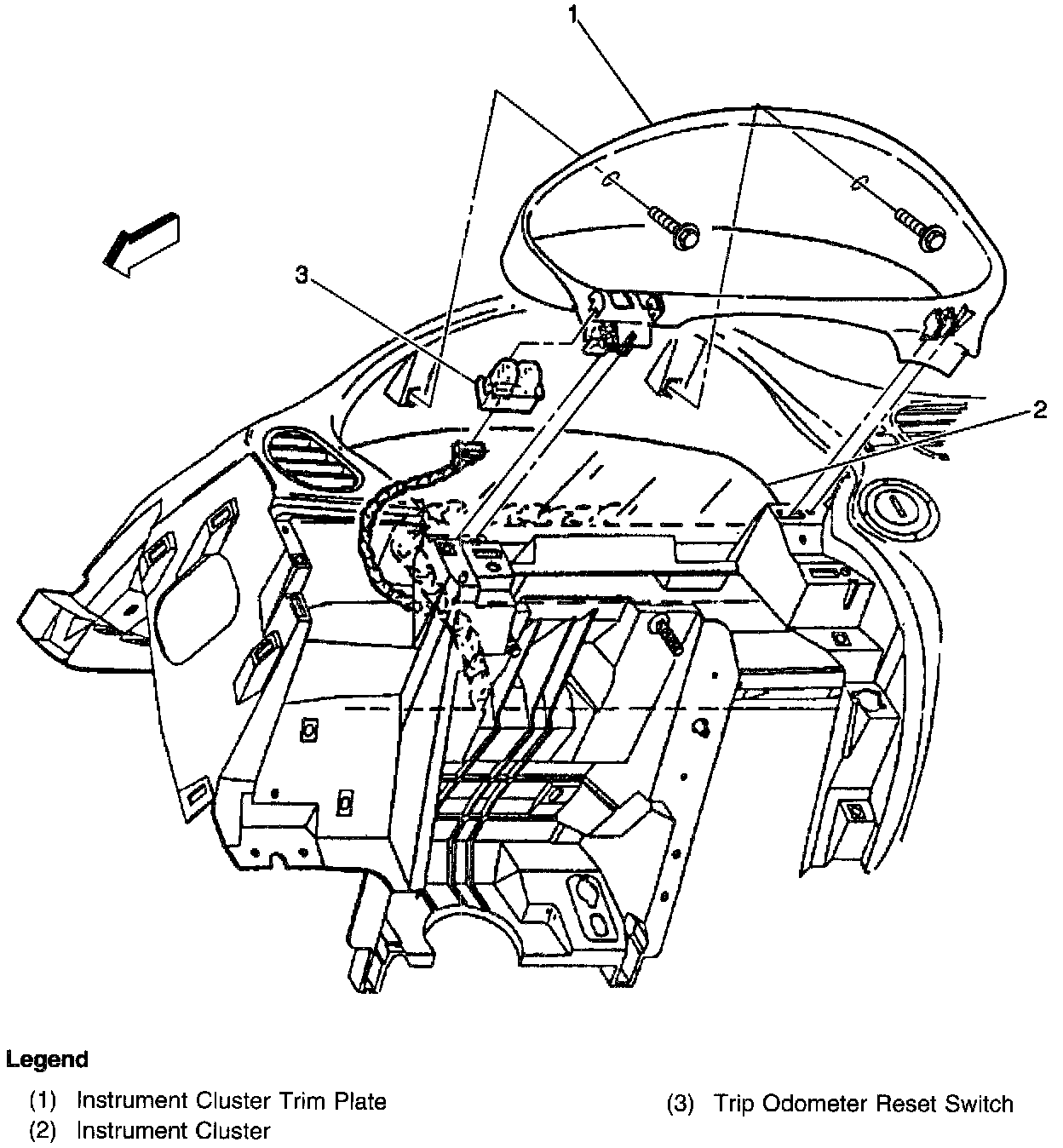

Trip Odometer Reset Switch - LH Side Of Instrument Panel:
RCDLR, Cruise Control & Hazard Lamp SW, Ignition SW Instrument Cluster - LH Side Of I/P:
Top of I/P, above steering column
