Ignition Control Module (ICM) Wiring Harness

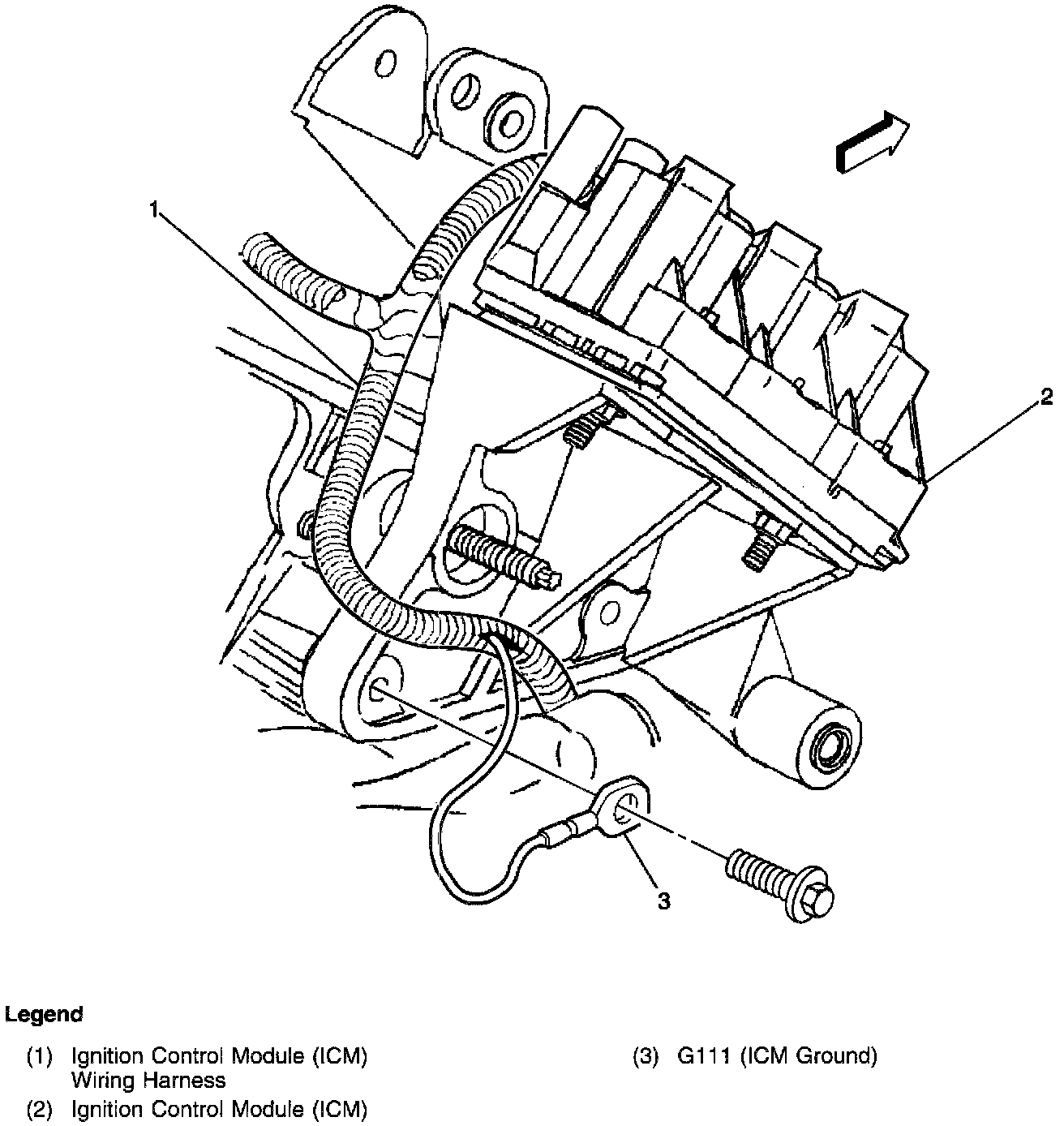

Ignition Control:

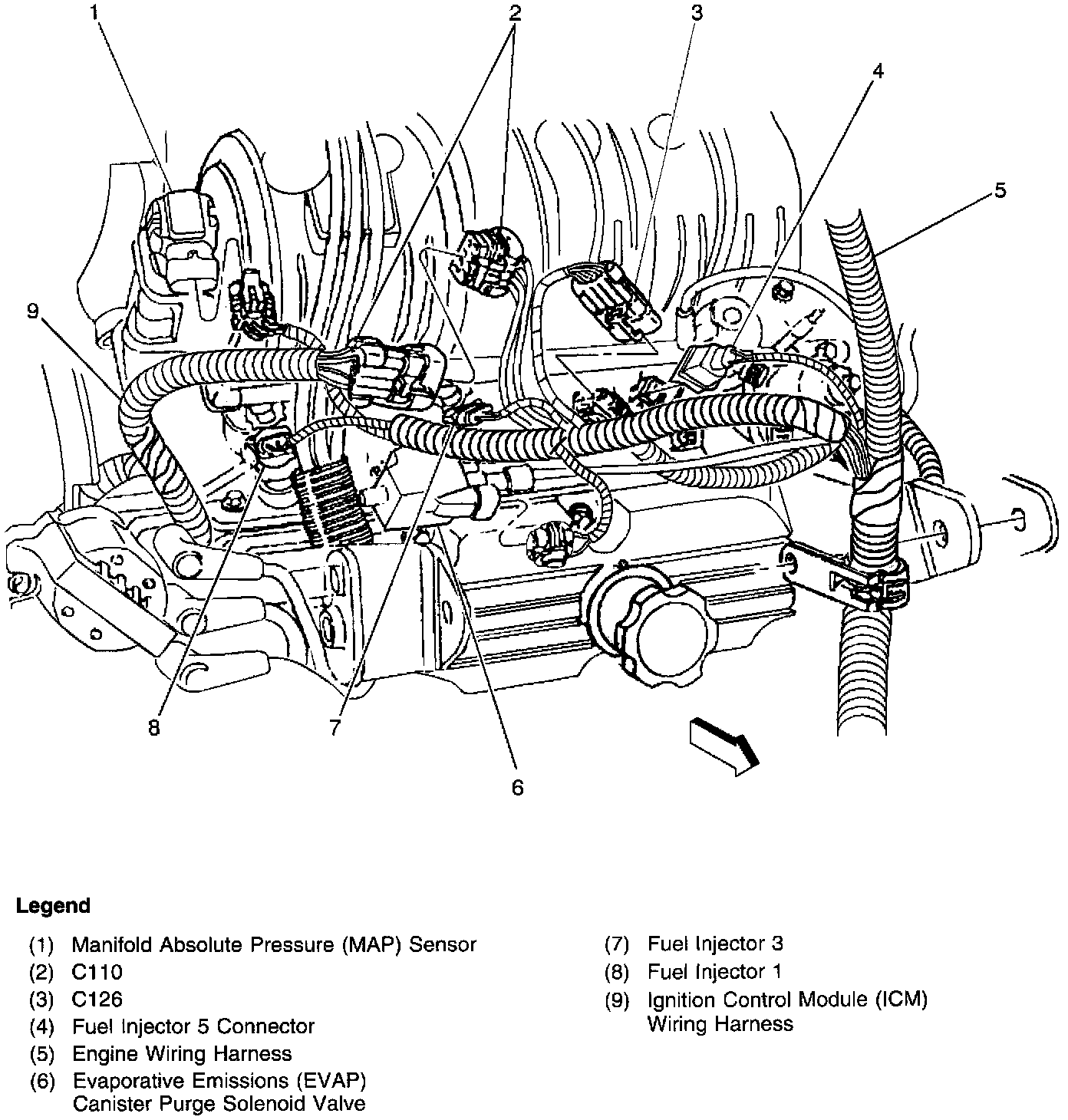

Top Front Of Engine:

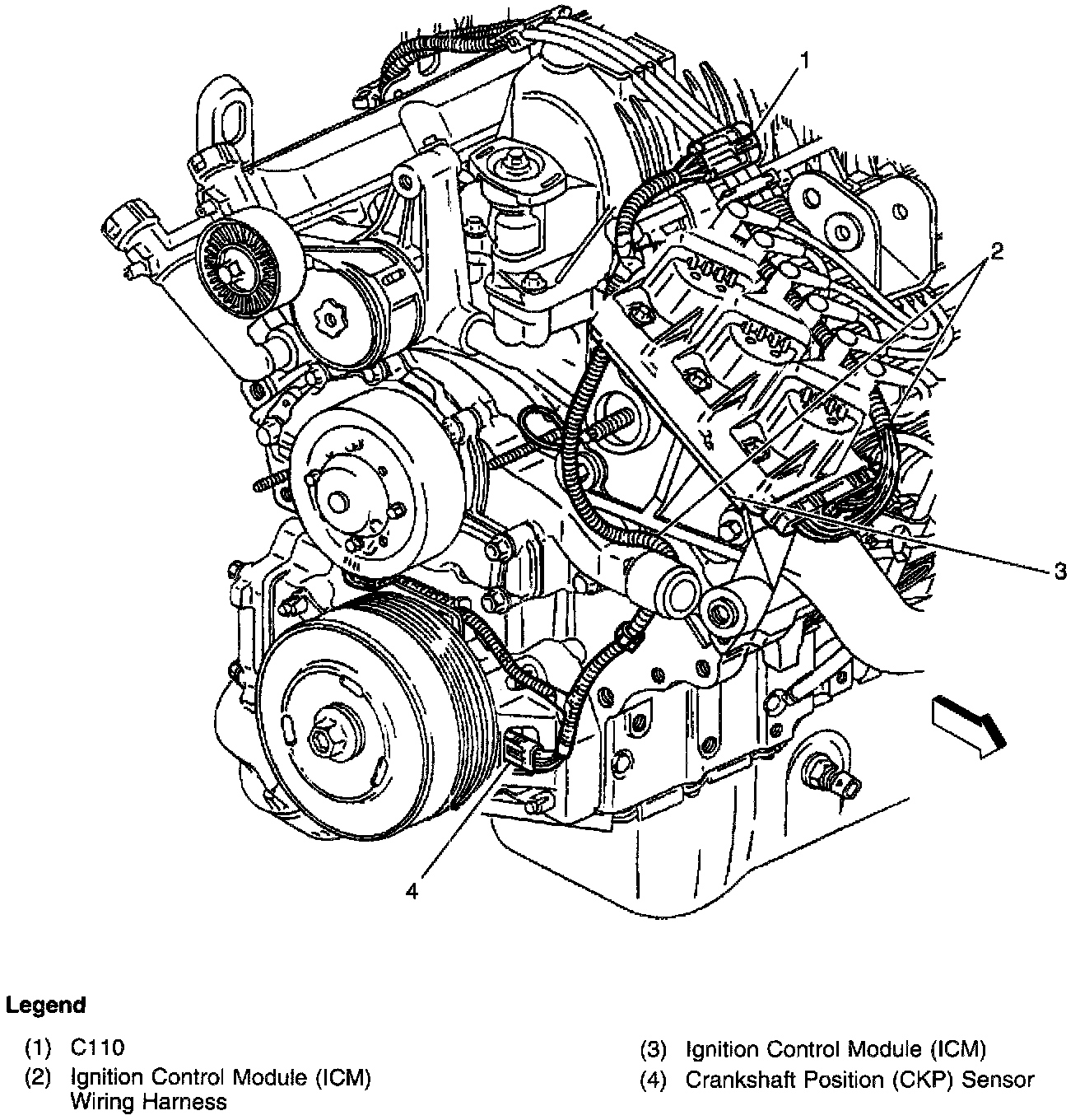

ICM, CKP Sensor And C110 - RH Side Of Engine:
