Air Cleaner/PCM Housing
Air Cleaner/PCM Housing

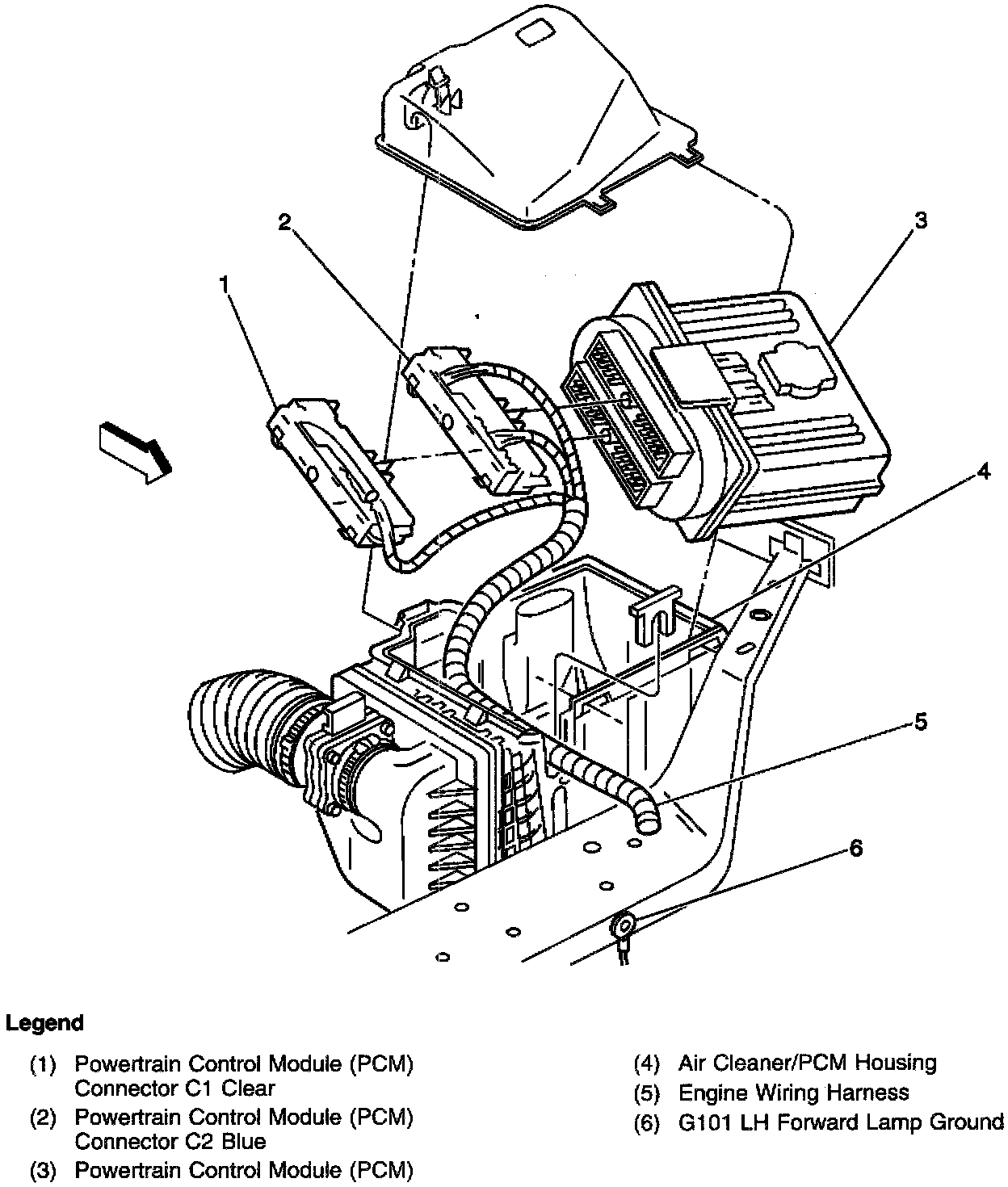

Powertrain Control Module - LH Side Of Engine Compartment:
