Blade Element Set Check

Description:

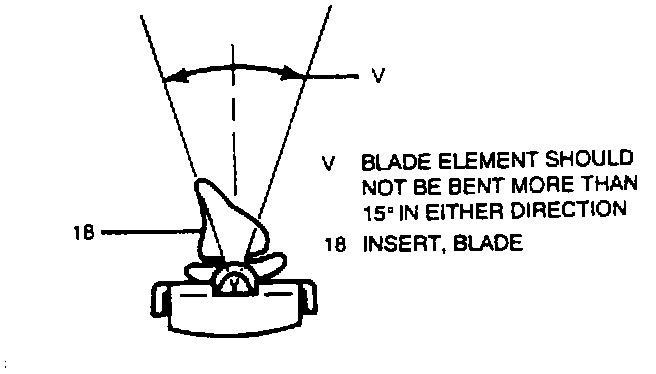

Remove the wiper blade assemblies from the wiper arm assemblies. Look down the length of the wiper blade insert (18). The wiper blade insert which contacts the glass must be on the center line of the wiper blade assembly ±15°. Replace the wiper blade insert (18) if necessary. Install the wiper blade assemblies on the wiper arm assemblies.
