Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Chart 7 Delay Operates Incorrectly or Not at All

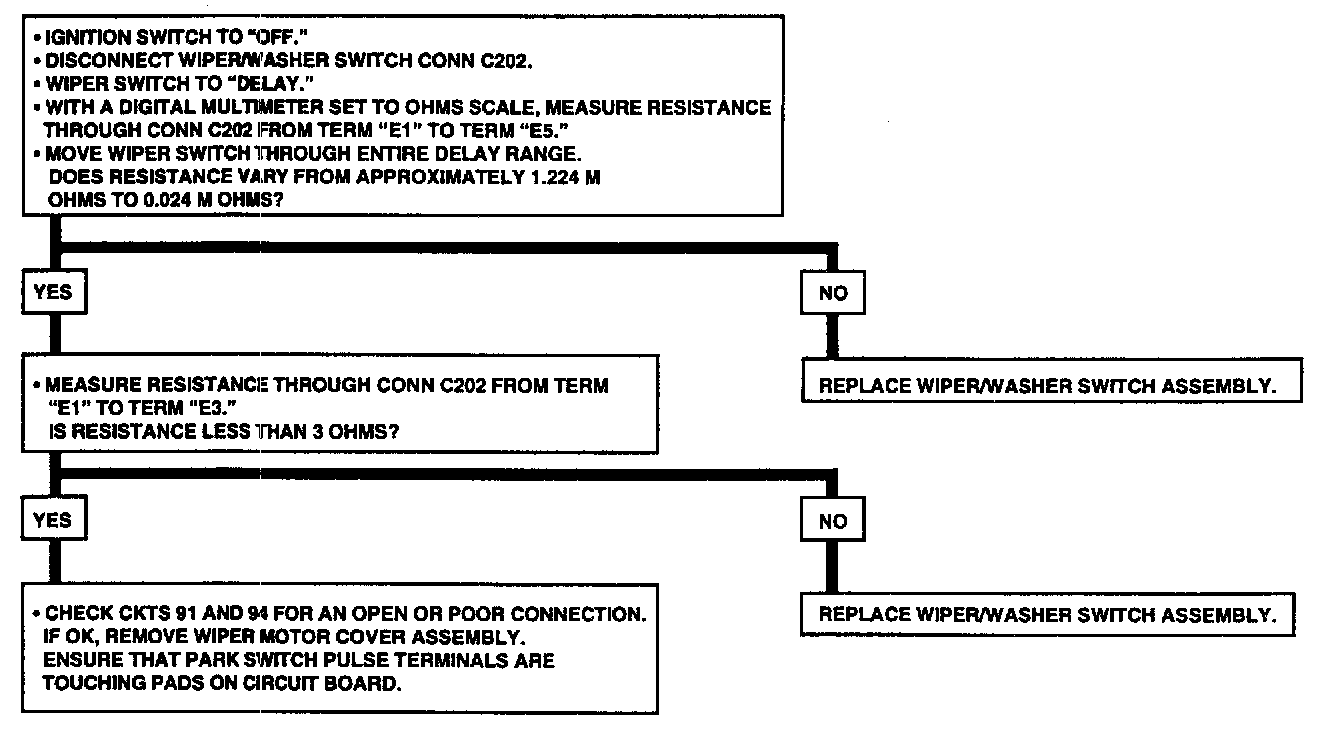

Chart 7 Delay Operates Incorrectly or Not at All

Chart7: Pulse Delay Operates Incorrectly Or Not At All:
