Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>

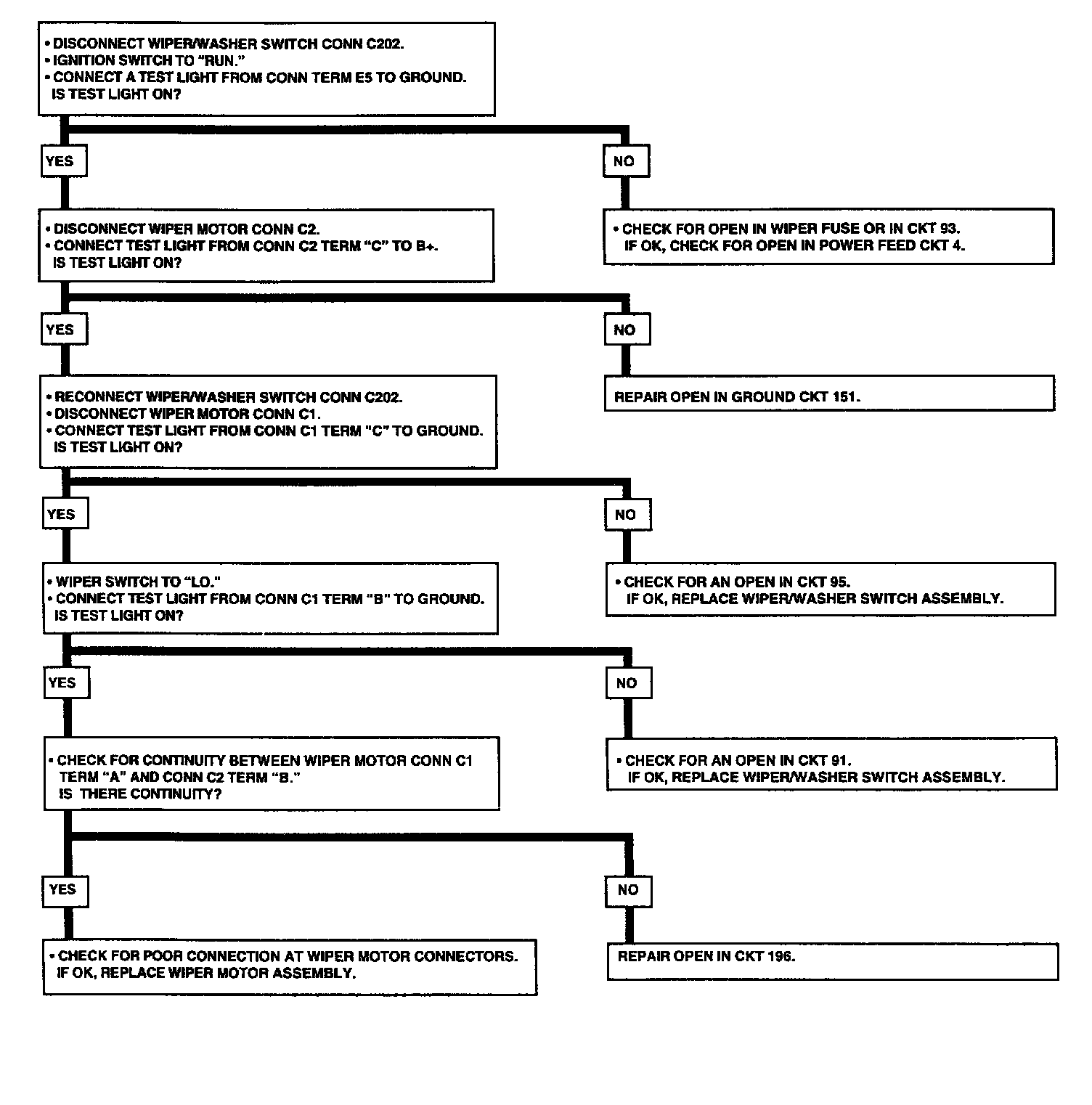

Chart 1 Wipers Do Not Operate In Any Mode
Chart 1 Wipers Do Not Operate In Any Mode
Chart1: Wipers Do Not Operate In Any Mode:
