Torque Converter Cover: Service and Repair

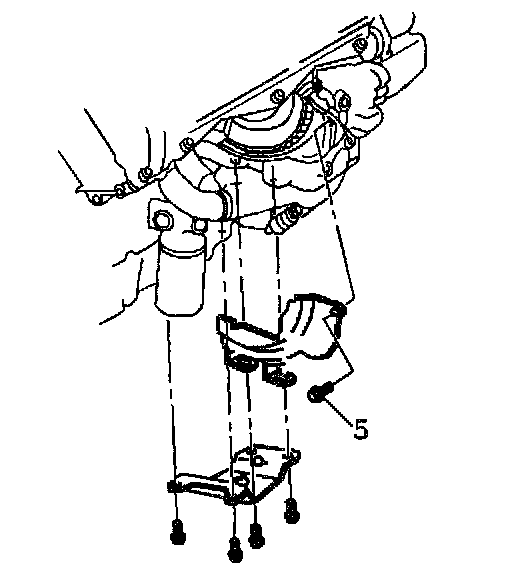

REMOVAL PROCEDURE





1. Raise the vehicle. Support the vehicle. Refer to General Vehicle Lifting and Jacking in Service Precautions.
2. Remove the attaching bolts and the engine-to-transmission brace.
3. Remove the torque converter cover.

INSTALLATION PROCEDURE





1. Install the torque converter cover.
^ Tighten the cover bolt to 12 Nm (106 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the engine-to-transmission brace and attaching bolts.
^ Tighten the bolts to 47 Nm (35 ft. lbs.).

3. Remove the safety stands.
4. Lower the vehicle.
