Rear Suspension

REMOVAL PROCEDURE
1. Remove the tire and wheel assembly. Refer to WHEEL REMOVAL.
2. Remove the brake caliper and the support caliper.
3. Remove the brake rotor.

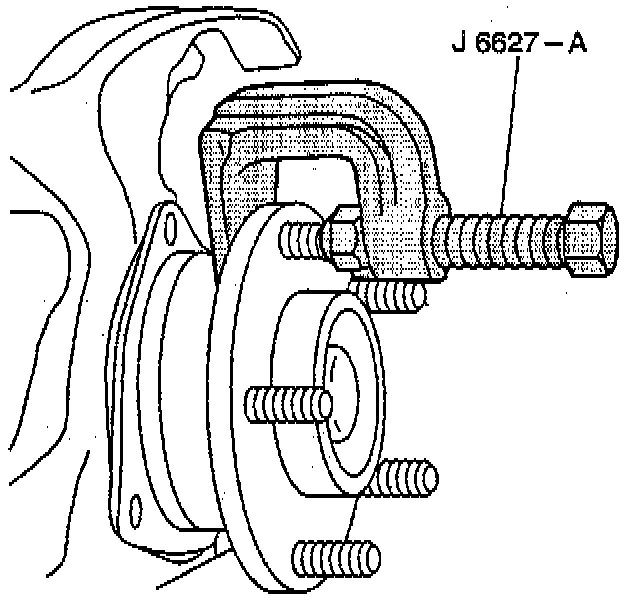

4. Remove the wheel stud with the J 6627-A.

INSTALLATION PROCEDURE
1. Install the new stud from the back side of the hub.

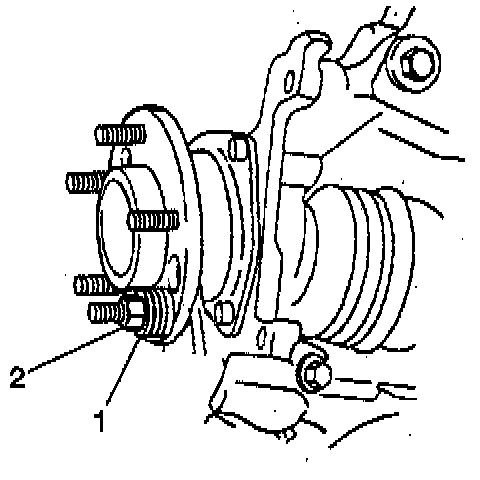

2. Install flat washers (1) on the wheel stud (2).

Important: Ensure that the wheel stud is fully seated against the wheel hub flange.

3. With the flat side of a wheel nut against the washers, tighten the wheel nut until the wheel stud head seats against the wheel hub flange.
4. Install the brake rotor.
5. Install the brake caliper.
6. Install the tire and wheel assembly. Refer to WHEEL INSTALLATION.

Tighten
Tighten the wheel nuts to 140 Nm (100 ft. lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
