Air Compressor Head Replacement
REMOVAL PROCEDURE1. Remove the air compressor assembly from the vehicle. Refer to AIR COMPRESSOR REPLACEMENT.
2. Remove the air compressor connector from he connector anchor (slide the air compressor connector away from the air compressor and off of the anchor).
3. Remove two bolts and the heat shield from the air compressor bracket.
4. Remove the air dryer. Refer to AIR DRYER REPLACEMENT

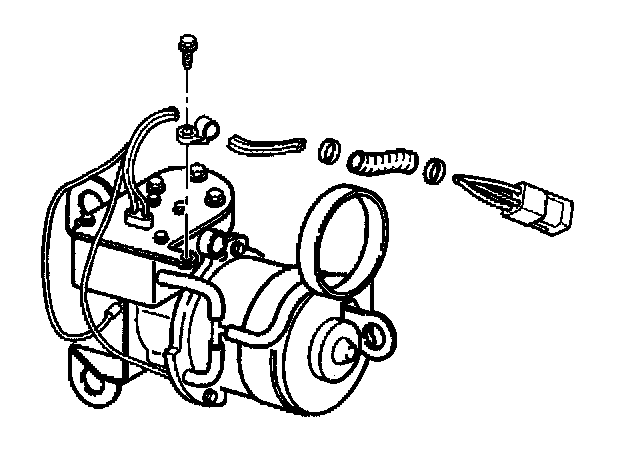

5. Cut the harness tie.
6. Remove the bolt and the harness tie.
Important: Note the wire colors and the terminal numbers to ensure correct assembly.
7. Remove the two harness ties and the wrap from the wires.
8. Remove two wire terminals from the air compressor connector.
9. Remove the air hose from the air compressor head.

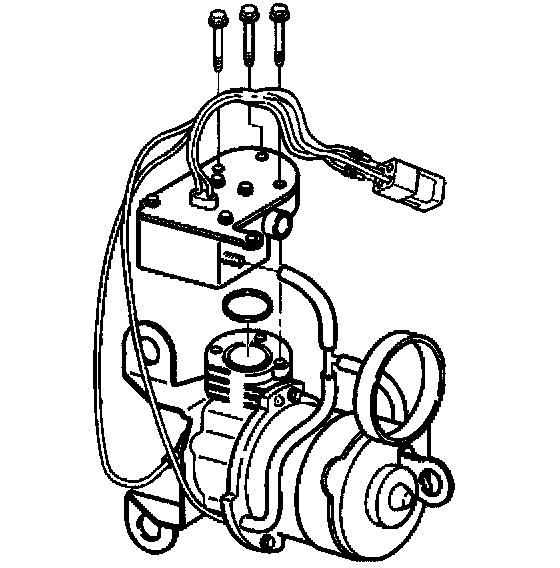

10. Remove three head bolts and the air compressor head from the air compressor assembly.
11. Remove the gasket from the air compressor head or the air compressor assembly.
INSTALLATION PROCEDURE
1. install the new gasket on assembly.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
2. Install the air compressor head on the air compressor assembly with three bolts.
Tighten
Tighten three bolts to 6 Nm (53 inch lbs.).
3. Connect the air hose to the air compressor head.
4. Install the two wire terminals in the air compressor connector the air compressor
5. Install the wrap around four wires and secure with two harness ties.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
6. Install four wires in the harness tie and install the harness tie on the air compressor head with the bolt.
Tighten
Tighten the bolt to 3 Nm (26 inch lbs.).
7. Install the air dryer. Refer to AIR DRYER REPLACEMENT.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
8. Install the heat shield and the harness tie on the air compressor bracket with three screws.
Tighten
Tighten three screws to 4 Nm (3.5 inch lbs.).
9. Connect the air compressor connector to the connector anchor.
10. Install the air compressor on the vehicle. Refer to AIR COMPRESSOR REPLACEMENT.
